EP4CE10E22A7N Overview

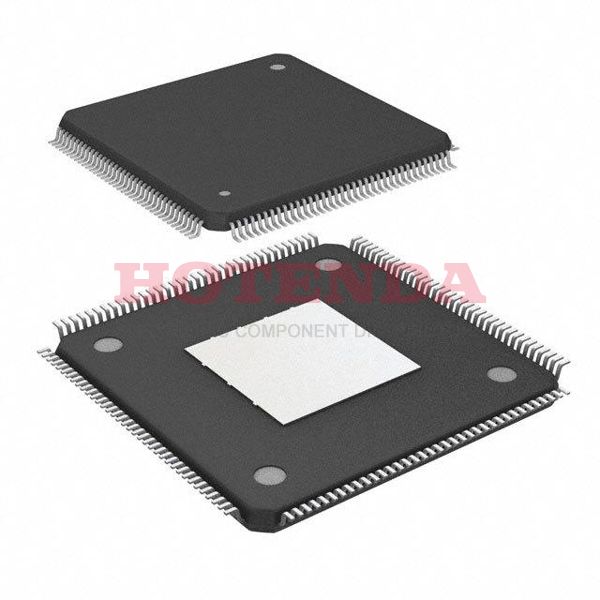

A 144-LQFP Exposed Pad package is provided with this component. In this kind of FPGA, FIELD PROGRAMMABLE GATE ARRAY is used. The I/Os are designed to facilitate a more coherent transfer of data. A fundamental building block consists of 10320 logic elements/cells. The supply voltage is 1.2V volts. Part of the Field Programmable Gate Arrays family, this FPGA part is a programmable gate array. By attaching the Surface Mount connector, you can use this FPGA module with your development board. Fpga chips operates wFpga chipsh a supply voltage of 1.15V~1.25V. This is a type of FPGA that is part of the Cyclone? IV E series of FPGAs. Operating temperatures should be maintained within the -40°C~125°C TJ range at all times when the unit is in use. In this device, 91 outputs are incorporated in order to provide you with maximum flexibility. As a space-saving measure, this FPGA model is contained within Tray. 144 terminations are present in total. The RAM bits that are offered by this fpga chips are 423936. EP4CE10 is the base part number that can be used to identify related parts. The FPGA is built as an array of 645 latches or CLBs. An external power supply of 1.21.2/3.32.5V is required to power the device. A crystal oscillating at 472.5MHz is one of the most common components of this device. A CLB is a basic module that determines the architecture of a system.
EP4CE10E22A7N Features
91 I/Os
Up to 423936 RAM bits
EP4CE10E22A7N Applications
There are a lot of Intel EP4CE10E22A7N FPGAs applications.
- Integrating multiple SPLDs
- Development Boards and Shields for Microcontrollers
- Scientific Instruments
- Server Applications
- Distributed Monetary Systems
- Automotive advanced driver assistance systems (ADAS)
- Broadcast
- Embedded Vision
- Bioinformatics
- Computer hardware emulation
