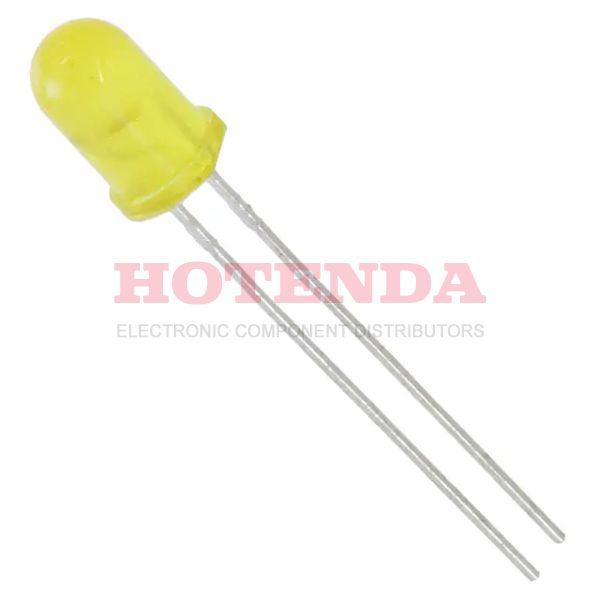

WP7113YD14V datasheet pdf and LED Indication - Discrete product details from Kingbright stock available on our website
SOT-23
WP7113YD14V Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Packaging
Bulk
Published
2007
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
ECCN Code
EAR99
Color
Yellow
Additional Feature
HIGH RELIABILITY
HTS Code
8541.40.20.00
Packing Method
TAPE AND REEL
Number of Functions
1
Terminal Pitch
2.54mm
Operating Temperature (Max)
70°C
Operating Temperature (Min)
-40°C
Configuration
Standard
Voltage - Forward (Vf) (Typ)
14V
Viewing Angle
30°
Optoelectronic Device Type
SINGLE COLOR LED
Current - Test
10.5mA
Lens Style
Round with Domed Top
Lens Size
5mm T-1 3/4
Luminous Intensity
20 mcd
Lens Transparency
Diffused
Wavelength - Peak
590nm
Forward Current-Max
0.0135A
Wavelength - Dominant
588nm
Height
8.6mm
RoHS Status
ROHS3 Compliant
In-Stock:4023 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.362860
$0.36286
10
$0.342321
$3.42321
100
$0.322945
$32.2945
500
$0.304664
$152.332
1000
$0.287419
$287.419
WP7113YD14V Product Details
The Kingbright WP7113YD14V is a standard LED indication discrete component with a through hole design. It has a yellow color with a 588nm wavelength and a diffused lens. The light output is 16mcd, making it suitable for a variety of applications.
Features of the Kingbright WP7113YD14V include a long life span of up to 100,000 hours, a wide viewing angle of up to 120 degrees, and a low power consumption of up to 20mA. It is also RoHS compliant and UL recognized.
The Kingbright WP7113YD14V is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting. It is also suitable for use in medical equipment, security systems, and other applications that require a bright, reliable light source.
