Name: TBP01R2-508-05BE
Brand: CUI Devices
SKU: TBP01R2-508-05BE
Price: 0.72000 USD
Availability: InStock

new-10%

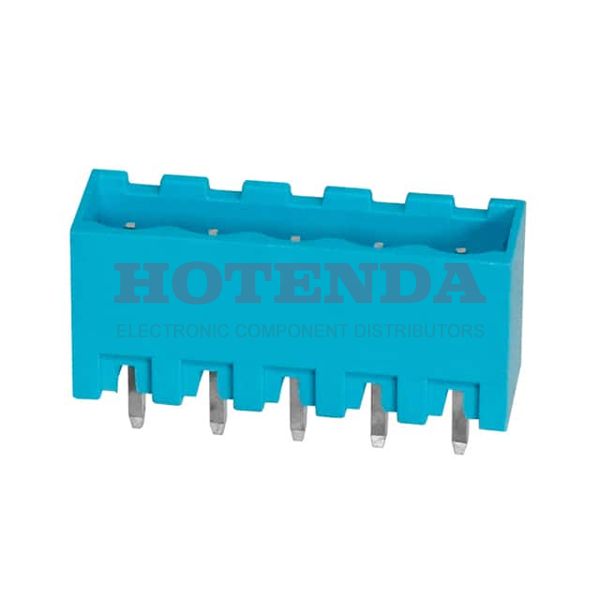

TBP01R2-508-05BE

Manufacturer part number:TBP01R2-508-05BE

Manufacturer:CUI Devices

Description:Bulk 0.200 5.08mm Blue 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) TBP01R2-508 Polyamide (PA66), Nylon 6/6 Tin Copper Alloy

Case Package:SOT-23

Datasheet:TBP01R2-508-05BE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Material	Copper Alloy
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	TBP01R2-508
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	5
Color	Blue
Pitch	0.200 5.08mm
Insulation Height	0.472 12.00mm
Termination Style	Solder
Contact Tail Length	0.157 4.00mm
Number of Levels	1
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	16A
Voltage - IEC	320V
Positions Per Level	5
Header Orientation	Vertical
Current - IEC	20A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

TBP01R2-508-05BE Product Details

TBP01R2-508-05BE Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number TBP01R2-508 belongs to the TBP01R2-508 Series.This device operates at a temperature of -40°C~105°C.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
