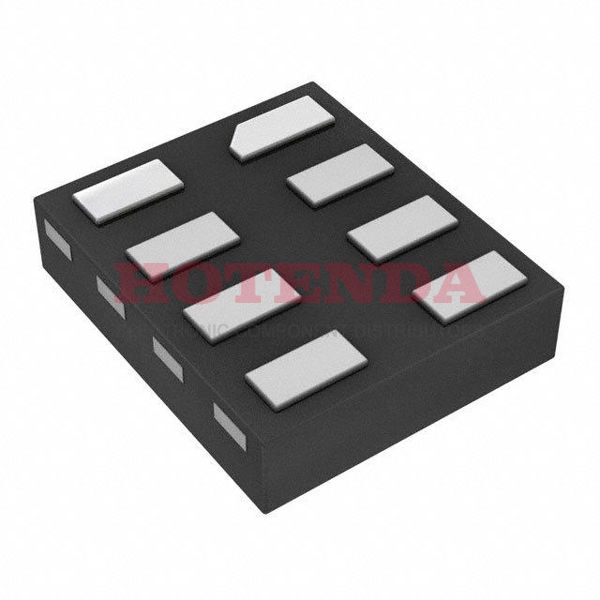

74LVC2G86RA3-7 Overview
The part is convenient to ship overseas because it is packed in a 8-XFDFN. The advanced packaging method Tape & Reel (TR) provides high reliability. A XOR (Exclusive OR) logic principle governs its operation. Voltage 1.65V~5.5V is needed to ensure the part's full functionality. Operational temperature extended around -40°C~125°C. Mounted in Surface Mount. Output current is 32mA 32mA in the high and low states. 74LVC is the series it belongs to. The total number of terminations is 8. There are 2 functions that significantly improve the user experience. As part of LVC/LCX/Z, this chip is used. Inputs are limited to 2. The device consists of 2 circuits. To supply the device, it requires a voltage of 1.65V. Vsup reaches its maximum value at 5.5V. In standby mode, there is 40μA maximum current.
74LVC2G86RA3-7 Features
XOR (Exclusive OR) Logic Type
Operating Temperature: -40°C~125°C
LVC/LCX/Z Family
74LVC2G86RA3-7 Applications
There are a lot of Diodes Incorporated
74LVC2G86RA3-7 Gates and Inverters applications.
- Electric grinding wheel
- Electrical tools
- Sewing machine
- DVD
- VCD
- Computer
- Television
- Washing machine
- Range hood
- Refrigerator
