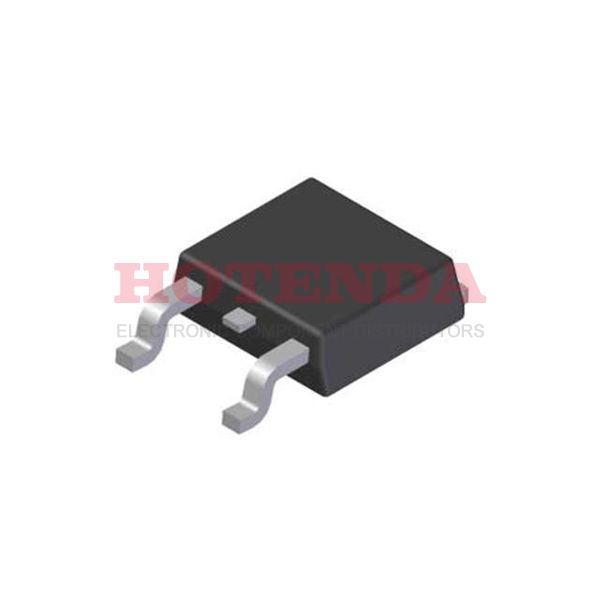

AP1117D33L-U Overview
Deliveries are in Tube cases. The package is in a TO-252-3, DPak (2 Leads + Tab), SC-63 case. Basically, the voltage regulator chip is made up of 2 terminations. In this case, Fixed represents the output type of the Voltage Regulated IC. This part implements 1 regulator ICs, which can be found in the following table. Regulator IC varies the range of Surface Mount operating temperatures. The Voltage Regulated IC operates at a temperature of 0°C~125°C TJ degrees, which is its operating temperature. It is configured for output function Positive on this regulator. The total number of pins in the regulator is 4. This IC regulator has a total of 1 outputs, which ensures a rapid, adequate performance when in use. There is a voltage dropout of 10 volts for this IC regulator. Several pins on the chip are 3-shaped. As an FYI, this IC voltage regulator has the basic part number AP1117. The maximal output current reaches 1A to meet the operating requirements. It operates in the 10mA Quiescent Current state.
AP1117D33L-U Features
1.3V dropout voltage
AP1117D33L-U Applications
There are a lot of Diodes Incorporated
AP1117D33L-U Linear Voltage Regulators applications.
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
