AP1122YG-13 Overview

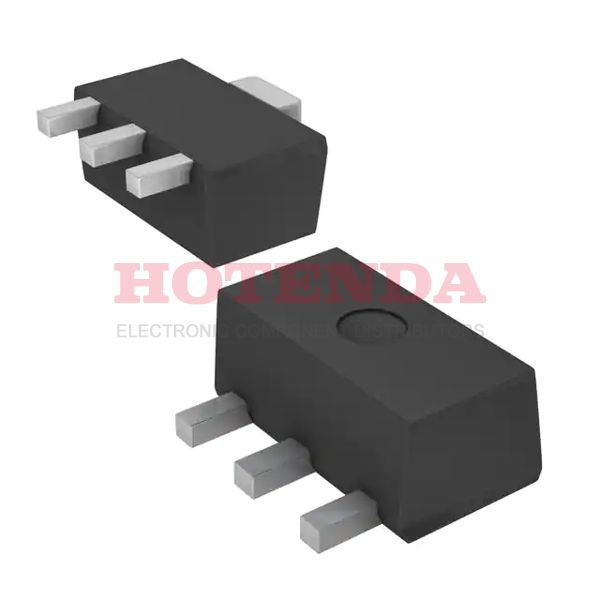

A Tape & Reel (TR) case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-243AA case. On the regulater IC chip, there are a total of 3 terminations. Output type Fixed. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of 0°C~125°C TJ degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. A total of 3 pins can be found on the board. There are 4 pins on the chip. As an FYI, this IC voltage regulator has the basic part number AP1122. Taking into account the operation requirements, the maximum output current of the IC voltage regulator reaches 1A. It operates in the 10mA Quiescent Current state.
AP1122YG-13 Features
AP1122YG-13 Applications
There are a lot of Diodes Incorporated
AP1122YG-13 Linear Voltage Regulators applications.
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
