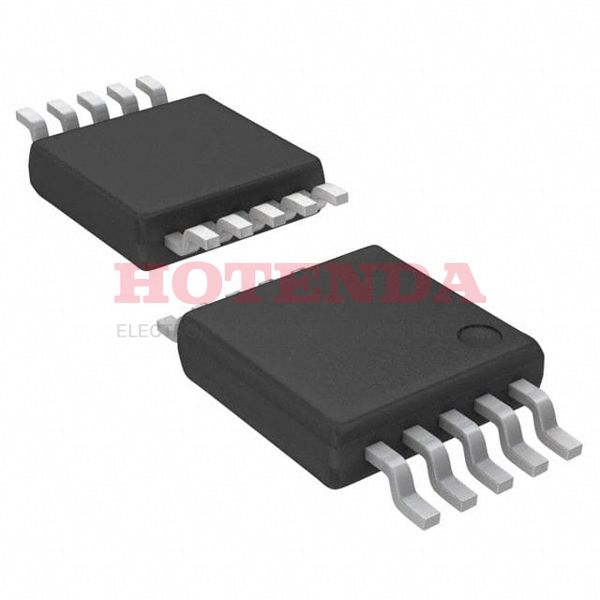

Name: AP3201AMHTR-G1
Brand: Diodes Incorporated
SKU: AP3201AMHTR-G1
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad
Supplier Device Package	10-HMSOP
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2011
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Function	Step-Down
Number of Outputs	1
Efficiency	93 %
Voltage - Input (Max)	18V
Output Type	Adjustable
Max Output Current	2A
Operating Supply Voltage	18V
Voltage - Input (Min)	4.75V
Output Configuration	Positive
Current - Output	2A
Max Output Voltage	16.2V
Voltage - Output (Min/Fixed)	0.92V
Topology	Buck
Min Input Voltage	4.75V
Frequency - Switching	380kHz
Max Input Voltage	18V
Synchronous Rectifier	No
Min Output Voltage	920mV
Voltage - Output (Max)	16.2V
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

AP3201AMHTR-G1 Product Details

AP3201AMHTR-G1 Overview

It is designed to provide optimal performance by utilizing the Tape & Reel (TR) package. For space-saving purposes, this voltage regulator is available in the 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) Exposed Pad package. A total of 1 outputs are configured in this voltage regulator. On the output pins of this DC DC switching regulator, there is a Adjustable output generated. Surface Mount-mount switching regulator. -40°C~85°C TA should be the operating temperature when voltage regulator is operating. Voltage regulator's switching frequency reaches 380kHz. The voltage regulator can be operated with a voltage as low as 4.75V as an input voltage. According to the table below, DC DC switching regulator's output voltage (Min/Fixed) is equal to 0.92V. DC DC switching regulator's 2A output current allows for maximum design flexibility. Voltage regulators' input voltage is limited to 18V. In order to use this voltage regulator 12v at its full potential, the output voltage should be kept at at least 920mV. A maximum output current of 2A A is available to meet the switching regulator operation requirements. On the basis of 16.2V's maximal output voltage, DC DC switching regulator can be operated easily. The maximum voltage of voltage regulator 12v DC DC switching regulator can produce is 16.2V, which is the highest available. An input voltage of 18V is used to operate this harley voltage regulator. 85°C allows switching regulator's stable operation at a high limit of maximum operating temperature. Reliability is ensured by operating at -40°C, the DC DC switching regulator's minimum operating temperature. A dc to dc voltage regulator's minimum input voltage of 4.75V is supported by the voltage regulator. The DC-DC switching regulator is designed to operate at its maximum input voltage.
