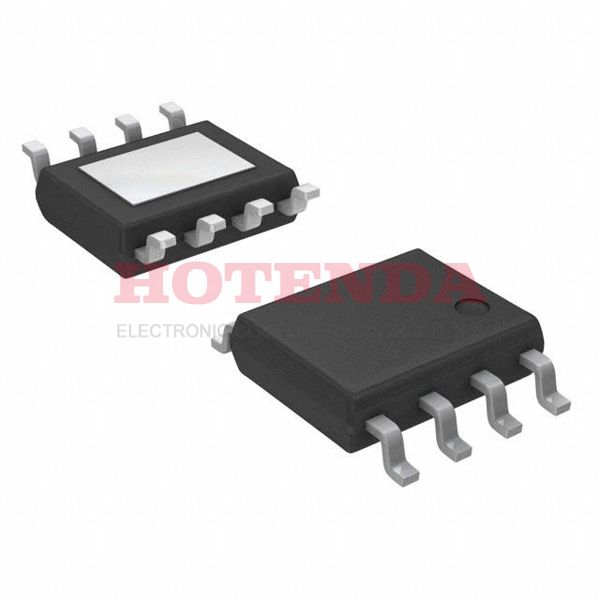

Name: AP3503MPTR-G1
Brand: Diodes Incorporated
SKU: AP3503MPTR-G1
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Supplier Device Package	8-PSOP
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2012
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	18V
Output Type	Adjustable
Voltage - Input (Min)	4.5V
Output Configuration	Positive
Current - Output	3A
Max Output Voltage	16.2V
Voltage - Output (Min/Fixed)	0.925V
Topology	Buck
Min Input Voltage	4.5V
Frequency - Switching	340kHz
Max Input Voltage	18V
Synchronous Rectifier	Yes
Min Output Voltage	925mV
Voltage - Output (Max)	16.2V
RoHS Status	ROHS3 Compliant

AP3503MPTR-G1 Product Details

AP3503MPTR-G1 Overview

A Tape & Reel (TR) package is used in this voltage regulator to optimize performance. In order to save space, this voltage regulator is packaged in the 8-SOIC (0.154, 3.90mm Width) Exposed Pad package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~85°C TA is essential when operating. A DC-DC switching regulator such as this one switches at 340kHz. Voltage regulators like this one can operate at least with 4.5V as the dc to dc voltage regulator's minimum input voltage. It is evident from the table below that adjusting voltage regulator's output voltage (Min/Fixed) is equal to 0.925V. This voltage regulator 12v features maximum design flexibility thanks to its 3A output current. As far as the voltage input is concerned, DC DC switching regulator can accept up to 18V. Ideally this switch regulator should have an output voltage of about 925mV at the very least. The maximal output voltage of 16.2V allows adjusting voltage regulator for simple operation. DC DC switching regulator offers a maximum output voltage of 16.2V as its maximum output voltage. Operating at the high-limit maximum operating temperature 85°C makes the voltage regulator stable. To ensure reliability, the voltage regulator 12v operates at a minimum operating temperature of -40°C. An input voltage of 4.5V is the minimum voltage that it supports. At its maximum voltage, this DC-DC switching regulator is designed to sustain a 18V input voltage.
