Name: AP6503ASP-13
Brand: Diodes Incorporated
SKU: AP6503ASP-13
Availability: InStock

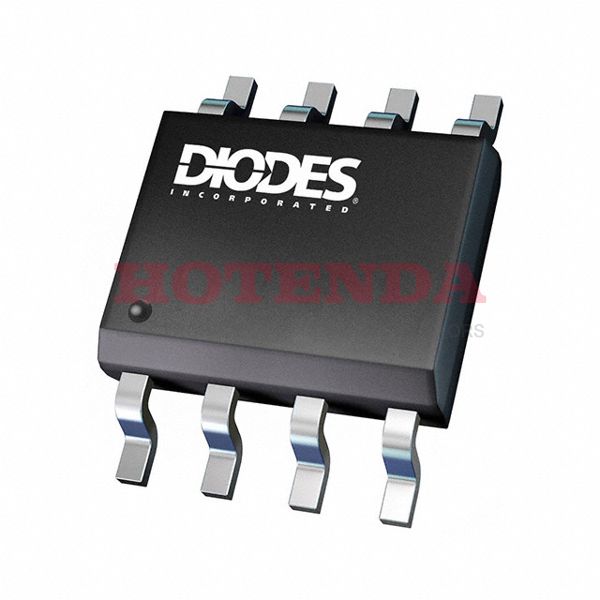

AP6503ASP-13

Manufacturer part number:AP6503ASP-13

Manufacturer:Diodes Incorporated

Description:8 Terminals 4.75V 8-Pin AP6503 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 240kHz Digi-Reel® 8-SOIC (0.154, 3.90mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:AP6503ASP-13 Datasheet PDF

RoHs Status:non-compliant

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154, 3.90mm Width) Exposed Pad
Number of Pins	8
Operating Temperature	-40°C~85°C TA
Packaging	Digi-Reel®
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Last Time Buy
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	AP6503
Function	Step-Down
Number of Outputs	1
Efficiency	95 %
Output Voltage	20V
Output Type	Adjustable
Max Output Current	3A
Operating Supply Voltage	23V
Voltage - Input (Min)	4.75V
Input Voltage-Nom	12V
Min Supply Voltage	4.75V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Voltage - Output (Min/Fixed)	0.925V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	240kHz
Control Technique	PULSE WIDTH MODULATION
Rise Time	130ns
Synchronous Rectifier	Yes
Voltage - Output (Max)	20V
Max Duty Cycle	90 %
Height	1.37mm
Length	4.95mm
Width	3.9mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

AP6503ASP-13 Product Details

AP6503ASP-13 Overview

It uses the Digi-Reel® package in order to optimize the performance of this voltage regulator. During the development of this harley voltage regulator, 8 terminations were made. A SWITCHING REGULATOR type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. The harley voltage regulator is available as a 8-SOIC (0.154, 3.90mm Width) Exposed Pad package to save space. The voltage regulator is configured with 1 outputs. As you can see, this DC DC switching regulator generates Adjustable output on its output pins. A Surface Mount mounting is required for this switching regulator. Voltage regulators should be operated at -40°C~85°C TA temperature while operating. DC-DC switching regulators reach 240kHz switching frequencies. Despite its low input voltage, this voltage regulator can operate. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 0.925V. This voltage regulator's peak reflow temperature is so high as to make it virtually indestructible. For operation, voltage regulator provides a nominal input voltage of 12V. There is a DC/DC regulator in this family that belongs to the AP6503 family. At 20V volts, voltage regulator can provide voltage. To operate the voltage regulator 12v, 8 pins are required. Accordingly, dc to dc voltage regulator's maximum output current is 3A A. By using 20V as the maximum output voltage, adjusting voltage regulator is easy to operate. Switching regulators such as this operate from voltages of 23V. In order to ensure reliable performance, the dc to dc voltage regulator's minimum supply voltage is 4.75V volts.
