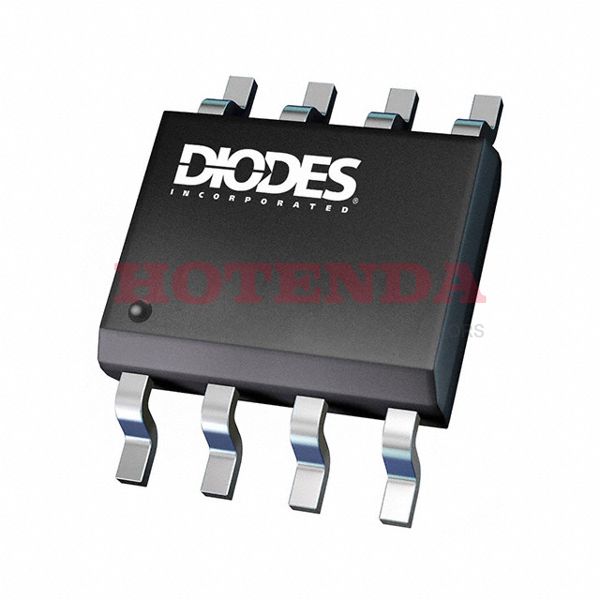

AP65450SP-13 Overview
This harley voltage regulator utilizes the Tape & Reel (TR) package for optimized performance. This harley voltage regulator has 8 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHING REGULATOR. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a 8-SOIC (0.154, 3.90mm Width) Exposed Pad package. A total of 1 outputs are configured in this voltage regulator. This DC DC switching regulator generates Adjustable output on its output pins. As the name implies, this voltage regulator 12v is designed for mounting on a Surface Mount bracket. Keeping dc to dc voltage regulator's operating temperature at -40°C~85°C TA is essential when operating. In this voltage regulator 12v, the switching frequency is 650kHz. The regulator is capable of operating with a dc to dc voltage regulator's minimum input voltage of 4.5V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.76V. It features maximum design flexibility due to dc to dc voltage regulator's 4A output current. Voltage regulator's input voltage can reach 18V. The peak reflow temperature of this regulator amounts to NOT SPECIFIED to be essentially indestructible. An input voltage of 12V is required for switching regulator operation. The maximal output voltage of 6V allows DC DC switching regulator to be operated easily. The OUTPUT VOLTAGE RANGE FROM 0.76 V TO 6 V feature adds to the efficiency and stability of this switching regulator.
AP65450SP-13 Features
1 outputs
Peak reflow temperature (Cel) of NOT SPECIFIED
OUTPUT VOLTAGE RANGE FROM 0.76 V TO 6 V
AP65450SP-13 Applications
There are a lot of Diodes Incorporated AP65450SP-13 Voltage Regulators applications.
- Program control systems
- Fire elevators
- Scientific testing
- Communication system
- Pipe bending machines
- Geothermal power
- Shearing machines
- Bending machines
- Direct power supply system
- Television equipment
