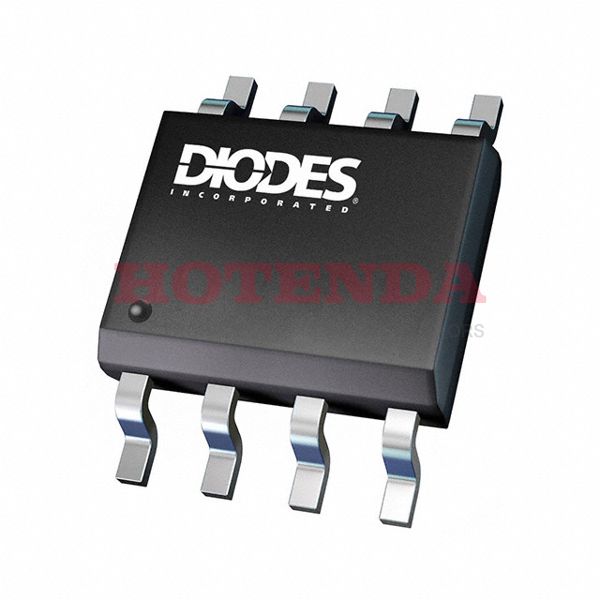

AP65454SP-13 Overview
Using the Tape & Reel (TR) package, this voltage regulator optimizes the performance of the voltage regulator 12v. The type of analog IC that this voltage regulator is equipped with is SWITCHING REGULATOR. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a 8-SOIC (0.154, 3.90mm Width) Exposed Pad package. 1 outputs of voltage regulator are configured. Adjustable outputs are generated on the output pins of this adjusting voltage regulator. This voltage regulator 12v fits the Surface Mount mounting. When operating, adjusting voltage regulator's operating temperature should be kept at -40°C~85°C TA. The switching frequency of this DC-DC switching regulator reaches 650kHz. Voltage regulators like this one can operate at least with 4.5V as the dc to dc voltage regulator's minimum input voltage. According to the table below, DC DC switching regulator's output voltage (Min/Fixed) is equal to 0.765V. As a result of the 4A output current, voltage regulator offers maximum flexibility in design. As far as the voltage input is concerned, DC DC switching regulator can accept up to 18V. 260 is essentially indestructible due to DC DC switching regulator's peak reflow temperature. As a general rule, this voltage regulator 12v should keep its output voltage at least at 765mV. Using this voltage regulator 12v, you will be able to get the maximum output voltage of 6V.
AP65454SP-13 Features
1 outputs
Peak reflow temperature (Cel) of 260
AP65454SP-13 Applications
There are a lot of Diodes Incorporated AP65454SP-13 Voltage Regulators applications.
- Textile machinery
- Magnetohydrodynamic power
- Smart grid
- CMM
- Balance equipment
- Digital precision reference circuits
- Refrigerators of central air conditioners
- Medical monitoring systems
- CNC system
- Handheld GPS
