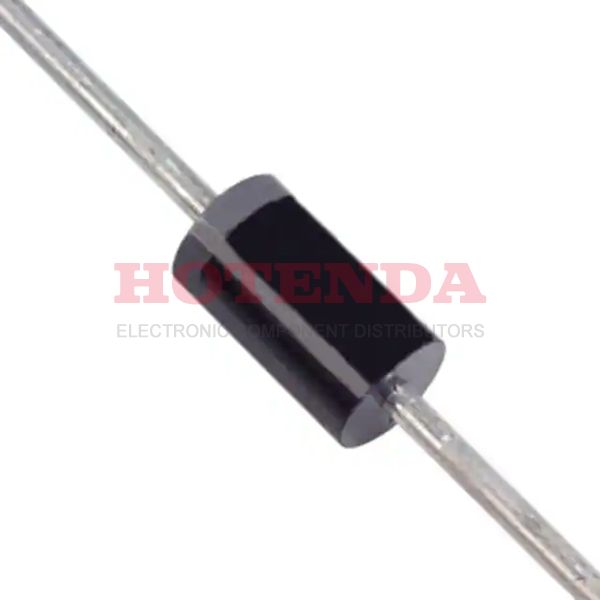

Name: HER105-T
Brand: Diodes Incorporated
SKU: HER105-T
Availability: InStock

new-10%

HER105-T

Manufacturer part number:HER105-T

Manufacturer:Diodes Incorporated

Description:HER105-T datasheet pdf and Diodes - Rectifiers - Single product details from Diodes Incorporated stock available on our website

Case Package:SOT-23

Datasheet:HER105-T Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	DO-204AL, DO-41, Axial
Number of Pins	2
Diode Element Material	SILICON
Packaging	Cut Tape (CT)
Published	2003
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
HTS Code	8541.10.00.80
Capacitance	20pF
Voltage - Rated DC	400V
Terminal Form	WIRE
Reach Compliance Code	unknown
Current Rating	1A
Base Part Number	HER105
Pin Count	2
Qualification Status	Not Qualified
Number of Elements	1
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Standard
Current - Reverse Leakage @ Vr	5μA @ 400V
Output Current	1A
Voltage - Forward (Vf) (Max) @ If	1.1V @ 1A
Case Connection	ISOLATED
Operating Temperature - Junction	-65°C~150°C
Forward Voltage	1.1V
Max Reverse Voltage (DC)	400V
Average Rectified Current	1A
Reverse Recovery Time	50 ns
Peak Non-Repetitive Surge Current	30A
RoHS Status	RoHS Compliant
Lead Free	Exempt

HER105-T Product Details

HER105-T Overview

For this device, the average rectified current is 1A volts.Having a current rating of 1A means it can carry the maximum current an indefinite period without deterioration.Capacitance can cause the device to deliver a value of 20pF.
