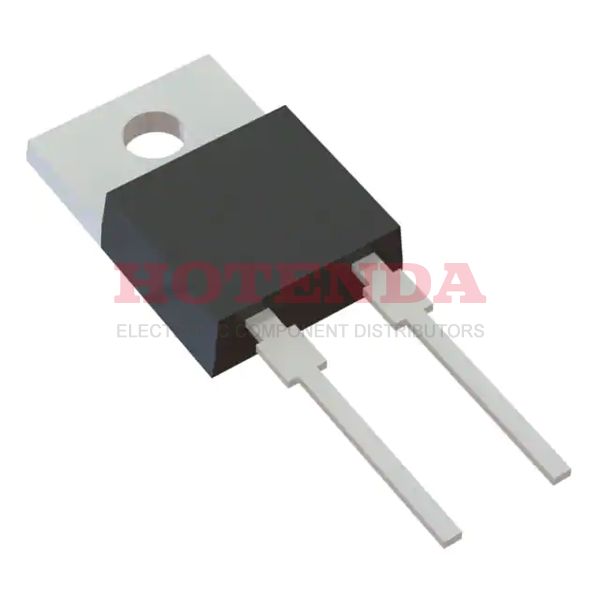

Name: MBR1040
Brand: Diodes Incorporated
SKU: MBR1040
Availability: InStock

new-10%

MBR1040

Manufacturer part number:MBR1040

Manufacturer:Diodes Incorporated

Description:MBR1040 datasheet pdf and Diodes - Rectifiers - Single product details from Diodes Incorporated stock available on our website

Case Package:SOT-23

Datasheet:MBR1040 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-2
Number of Pins	2
Supplier Device Package	TO-220AC
Weight	6.000006g
Packaging	Tube
Published	2005
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	150°C
Min Operating Temperature	-65°C
Element Configuration	Single
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	100μA @ 40V
Voltage - Forward (Vf) (Max) @ If	840mV @ 10A
Forward Current	10A
Operating Temperature - Junction	-65°C~150°C
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	10A
Forward Voltage	840mV
Max Reverse Voltage (DC)	40V
Average Rectified Current	10A
Peak Reverse Current	100μA
Max Repetitive Reverse Voltage (Vrrm)	40V
Capacitance @ Vr, F	400pF @ 4V 1MHz
Peak Non-Repetitive Surge Current	150A
Max Forward Surge Current (Ifsm)	150A
Height	8.89mm
Length	10.4mm
Width	4.82mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MBR1040 Product Details

MBR1040 Overview

In this device, there is an average rectified current of 10A volts.Forward current is allowed to reach a value of zero.Using the data chart, the peak reverse is 100μA in the datasheets.
