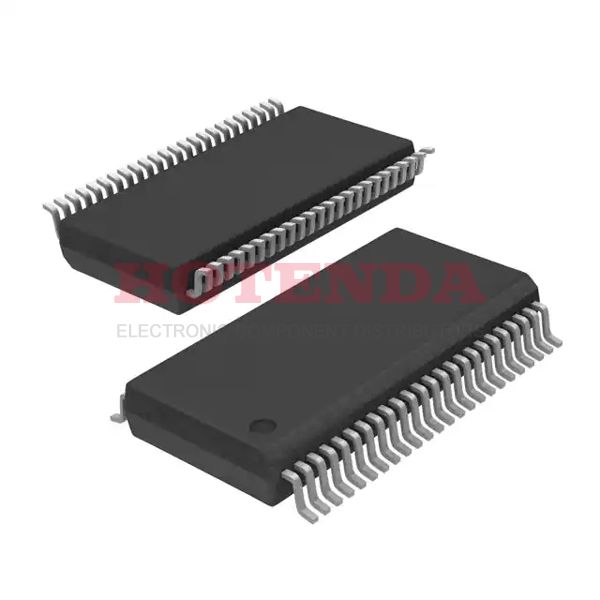

Name: PI3B16244AE
Brand: Diodes Incorporated
SKU: PI3B16244AE
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240, 6.10mm Width)
Number of Pins	48
Operating Temperature	-40°C~85°C
Packaging	Tube
Published	2014
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
ECCN Code	EAR99
Type	Bus Switch
Resistance	10Ohm
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	4
Supply Voltage	3.3V
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	16244
Operating Supply Voltage	3.3V
Circuit	4 x 1:1
Supply Voltage-Max (Vsup)	3.6V
Supply Voltage-Min (Vsup)	3V
Number of Ports	2
Number of Bits	16
Throw Configuration	SPST
Propagation Delay	250 ps
Quiescent Current	10μA
Turn On Delay Time	5 ns
Family	CBTLV/3B
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Independent Circuits	4
Height Seated (Max)	1.2mm
Length	12.5mm
Width	6.1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PI3B16244AE Product Details

PI3B16244AE Overview

As a means of saving space, digital switch is provided in the 48-TFSOP (0.240, 6.10mm Width).Tube is the packaging method.For mounting, digital switch ic uses the method Surface Mount.the multiplexers uses an analog IC Bus Switch.A temperature of -40°C~85°C will not leave the turn signal swturn signal switchch susceptible to external influences.Designers have greater flexibility when digital controlled switch operates at a 3V~3.6V supply voltage.Among its basic features are 48 terminations.The part number for 16244 can be used to find its logic switch related parts as well.The multiplexer's system works with 3.3V voltage.GULL WING is used as the point at which the conductors come to an end as part of this formula.In this case, Single is employed as the supply type.A total of 48 pins are configured on this board.Surface Mount is the way it is mounted.I would like to refer to the logic switch as a member of the CBTLV/3B family.In the signal multiplexer, there are 16 bits available.To avoid unnecessary failures, keep the supply voltage at 3V (Vsup).In order to avoid unnecessary failures, the maximum supply voltage (Vsup) should be kept at 3.6V.The digital switch ic is a part of an electronic system classified as Bus Driver/Transceivers.In the absence of external influences, it consumes 10μA current of multiplexer ic.It is possible to achieve reliable performance of the multiplexers with a voltage supply of 3.3V.As far as the resistance is concerned, it operates with 2.As far as the resistance is concerned, it operates with 10Ohm.
