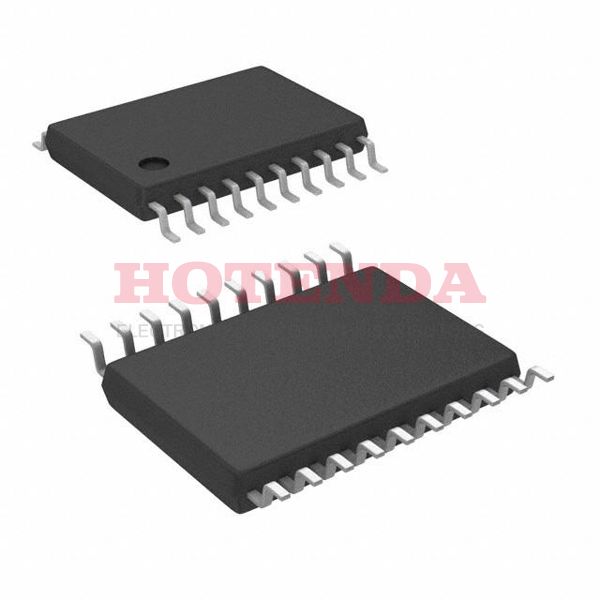

Name: PI3B3245LE
Brand: Diodes Incorporated
SKU: PI3B3245LE
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	27 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-TSSOP (0.173, 4.40mm Width)
Number of Pins	20
Operating Temperature	-40°C~85°C
Packaging	Tube
Published	2015
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	20
ECCN Code	EAR99
Type	Bus Switch
Resistance	10Ohm
Terminal Finish	Matte Tin (Sn)
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	0.65mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	3245
Operating Supply Voltage	3.3V
Circuit	8 x 1:1
Supply Voltage-Max (Vsup)	3.63V
Supply Voltage-Min (Vsup)	2.97V
Number of Ports	2
Number of Bits	8
Propagation Delay	4.5 ns
Quiescent Current	3μA
Turn On Delay Time	4.5 ns
Family	CBTLV/3B
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Independent Circuits	1
Length	6.5mm
Width	4.4mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PI3B3245LE Product Details

PI3B3245LE Overview

Due to the fact that it is provided in the 20-TSSOP (0.173, 4.40mm Width), digital switch allows the board to be compacted.The package is in the form of Tube.digital switch ic uses the method of Surface Mount for mounting.The analog IC in the multiplexers is identified as Bus Switch.By keeping the operating temperature at -40°C~85°C, turn signal switch will not be affected by external factors.When operated with a 3V~3.6V supply voltage, digital controlled switch provides digital controlled switch's superior flexibility for designers.The basic configuration of this system includes 20 terminations.To find signal switch's related components, a base part number of 3245 may also be used.The voltage supplied for multiplexer's system is 3.3V.multiplexer's systemGULL WING is used as the point at which the conductors come to an end as part of this formula.Single is used as its supply type.A total of 20 pins are configured on this board.As you can see, it is mounted in the direction of Surface Mount.The logic switch is a member of the CBTLV/3B family.Signal multiplexer provides 8 bits.To prevent unnecessary failures, it is recommended that the minimum supply voltage (Vsup) remain at 2.97V.In order to avoid some unnecessary failures, you should maintain a maximum supply voltage (Vsup) of 3.63V.In electronic terms, the digital switch ic is classified as Bus Driver/Transceivers.In the absence of external influences, it consumes 3μA current of multiplexer ic.Reliable performance of the multiplexers can be achieved when a supply voltage of 3.3V is provided.2 is the resistance at which it operates.A resistance of 10Ohm is used to operate it.
