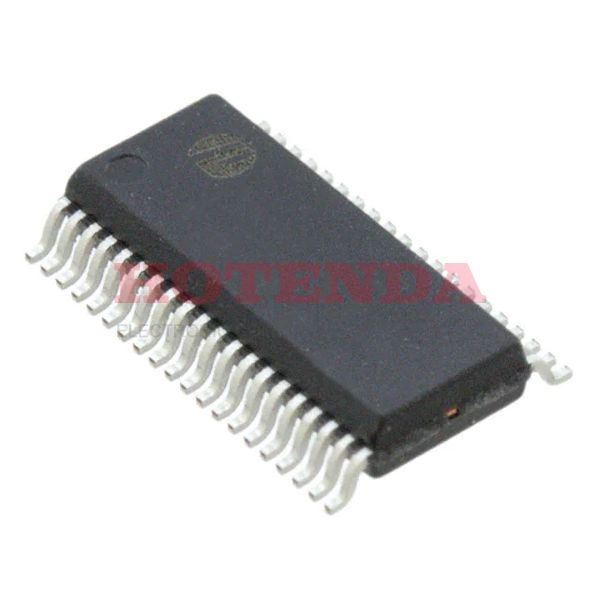

Name: PI3B32X245BEX
Brand: Diodes Incorporated
SKU: PI3B32X245BEX
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	18 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	40-FSOP (0.154, 3.90mm Width)
Number of Pins	40
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2016
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
ECCN Code	EAR99
Type	Bus Switch
Resistance	10Ohm
Voltage - Supply	3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	2
Supply Voltage	3.3V
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	32X245
Operating Supply Voltage	3.3V
Circuit	8 x 1:1
Supply Voltage-Max (Vsup)	3.63V
Number of Ports	2
Number of Bits	16
Propagation Delay	4.5 ns
Quiescent Current	3μA
Turn On Delay Time	4.5 ns
Family	CBTLV/3B
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Independent Circuits	2
Length	9.9mm
Width	3.9mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PI3B32X245BEX Product Details

PI3B32X245BEX Overview

It is included in the 40-FSOP (0.154, 3.90mm Width) in order to save board space.As a result, it is packaged in a way that is referred to as Tape & Reel (TR).Digital switch ic adheres to a mounting method of Surface Mount.For the analog part of the multiplexers, an IC Bus Switch is used.If the operating temperature is maintained at -40°C~85°C, turn signal switch will not be susceptible to external factors.With a supply voltage of 3V~3.6V, designers have greater flexibility of digital controlled switch.It is designed with 40 terminations as part of its basic configuration.The part number for 32X245 can be used to find its logic switch related parts as well.The turn signal switch is supplied with a voltage of 3.3V volts.It employs GULL WING as the point at which conductors come to an end.Single is employed as its supply type.The board is configured with 40 pins.It is mounted in the way of Surface Mount.The CBTLV/3B family includes the logic switch.Signal multiplexer provides 16 bits.It is advisable that the maximal supply voltage (Vsup) remains at 3.63V to avoid some unnecessary failures.Without any external influences, it consumes 3μA current of multiplexer ic at all times.It is possible to achieve reliable performance of the multiplexers with a voltage supply of 3.3V.2 ports are used for some other peripheral signal switchings to plug in.A resistance of 10Ohm is used to operate the signal switching.
