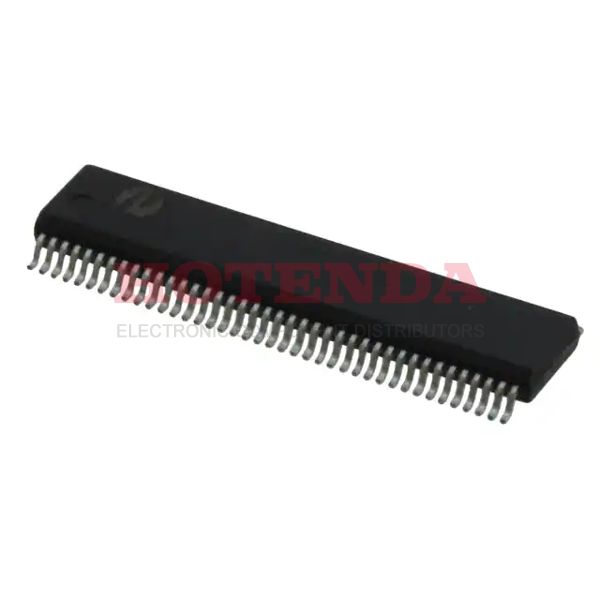

PI3B34X245BEX Overview
It is included in the 80-FSOP (0.154, 3.90mm Width) in order to save board space.The package is packaged in accordance with Tape & Reel (TR).Mounting is performed using Surface Mount.The multiplexers uses an analog IC Bus Switch as the analog part of the circuit.The operating temperature of -40°C~85°C will not be susceptible to external factors.A supply voltage of 3V~3.6V provides digital controlled switch's superior flexibility for designers.It is designed with 80 terminations as part of its basic configuration.The multiplexer's system works with 3.3V voltage.As a result, conductors end at GULL WING.Single is used as its supply type.A configuration of 80 pins is used.The mounting point is Surface Mount.The logic switch is a member of the family of CBTLV/3B.There are 32 bits signal multiplexer provides.It is recommended that the minimum supply voltage (Vsup) be kept at 2.97V to avoid some unnecessary failures.Vsup (maximum supply voltage) should be kept as 3.63V to prevent unnecessary failures.The digital switch ic is an electronic part classified into Bus Driver/Transceivers.Despite not interacting with external factors, it consumes 10μA current of multiplexer ic.If the supply voltage is set to 3.3V, reliable performance of the multiplexers can be achieved.This signal switching operates at a resistance of 2.As far as the resistance is concerned, it operates with 17Ohm.
PI3B34X245BEX Features
Supplied in the 80-FSOP (0.154, 3.90mm Width) package
Adopting a supply type of Single
Operating with the supply voltage of 3.3V
PI3B34X245BEX Applications
There are a lot of Diodes Incorporated PI3B34X245BEX Signal Switches / Multiplexers / Decoders applications.
- Code converters
- Analog to digital conversion
- HDMI applications
- Automatic Monitoring systems
- Electronically controlled engine system
- Speed synchronization of multiple motors in industries
- PCIe
- Video transmission
- Enabling different functions units in microprocessor instruction decoding
- CNC machines
