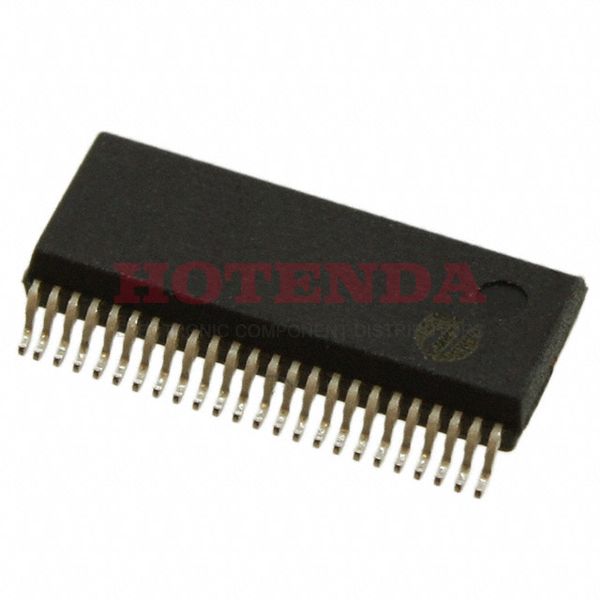

PI3C32X384BEX Overview
Due to the lack of space on the board, digital switch is provided in the 48-FSOP (0.154, 3.90mm Width).Tape & Reel (TR) is the method used for packaging.In terms of mounting, digital switch ic uses the method of Surface Mount.The analog IC in the multiplexers is identified as Bus Switch.The operating temperature of -40°C~85°C will not be susceptible to external factors.Using a 2.3V~3.6V supply voltage provides digital controlled switch's superior flexibility for designers.There is a base part number of PI3C32X384 which can also be used in order to locate the logic switch that are related to this item.As a type of supply, Single is employed.This multiplexer ic is configured with 48 pins.The multiplexer ic is mounted in the direction of Surface Mount.In the signal multiplexer, there are 20 bits available.Without any external influences, it consumes 1mA current of multiplexer ic at all times.It operates with a resistance of 8Ohm.There is no problem with operating this signal switch at the maximum temperature of 85°C.It is recommended that a minimum operating temperature of the multiplexer of -40°C be maintained.The device is specified to operate at the maximum supply voltage of 3.63V in accordance with its applicable specification.This mux switch configuration has 4 elements.
PI3C32X384BEX Features
Supplied in the 48-FSOP (0.154, 3.90mm Width) package
Adopting a supply type of Single
PI3C32X384BEX Applications
There are a lot of Diodes Incorporated PI3C32X384BEX Signal Switches / Multiplexers / Decoders applications.
- Microprocessor input/output systems
- Signal router
- Time division multiplexing system
- Telephone network
- Small scale TV wall
- Memory system of computers
- Audio transmission
- HD surveillance system
- Electronic circuits
- Speed synchronization of multiple motors in industries
