Name: PI3C34X245BE
Brand: Diodes Incorporated
SKU: PI3C34X245BE
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	80-FSOP (0.154, 3.90mm Width)
Number of Pins	80
Operating Temperature	-40°C~85°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	80
ECCN Code	EAR99
Type	Bus Switch
Resistance	8Ohm
Terminal Finish	Matte Tin (Sn)
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Voltage - Supply	2.3V~3.6V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	4
Supply Voltage	3.3V
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	34X245
Operating Supply Voltage	3.3V
Circuit	8 x 1:1
Supply Voltage-Max (Vsup)	3.63V
Supply Voltage-Min (Vsup)	2.97V
Number of Ports	2
Number of Bits	32
Propagation Delay	250 ps
Quiescent Current	2mA
Turn On Delay Time	9.8 ns
Family	CB3Q/3VH/3C/2B
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Independent Circuits	4
Height Seated (Max)	2mm
Length	20.5mm
Width	3.9mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

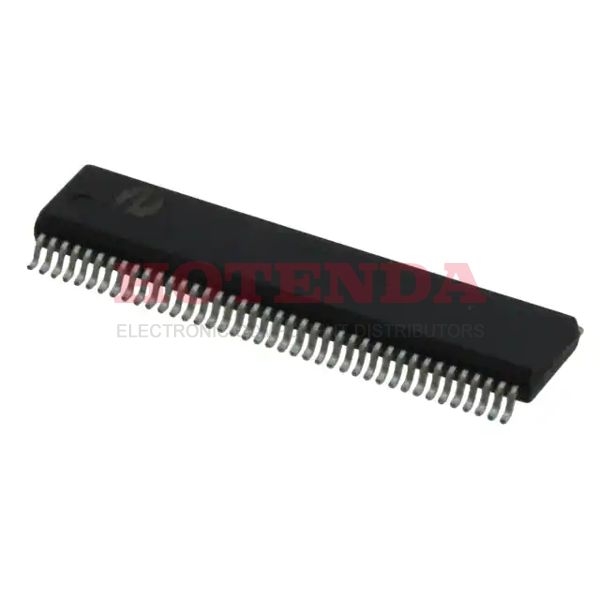

PI3C34X245BE Product Details

PI3C34X245BE Overview

Due to the fact that it is provided in the 80-FSOP (0.154, 3.90mm Width), digital switch allows the board to be compacted.It is packaged according to the Tube method.The method digital switch ic adopts for mounting is Surface Mount.For the analog part of the multiplexers, an IC Bus Switch is used.As long as the operating temperature is -40°C~85°C, turn signal switch will not be influenced by external factors.When digital controlled switch operates at 2.3V~3.6V, designers are provided with a greater degree of flexibility.Among its basic features are 80 terminations.There is a base part number 34X245 that can be used to locate signal switch's related components as well.The multiplexer is supplied with 3.3V voltage.GULL WING represents the end of conductors.This supply type employs Single.There are 80 pins on it.The mounting is in the way of Surface Mount.Among the family of CB3Q/3VH/3C/2B the logic switch is a member.As a result, signal multiplexer provides 32 bits.It is recommended that the minimum supply voltage (Vsup) be kept at 2.97V to avoid some unnecessary failures.In order to avoid some unnecessary failures, you should maintain a maximum supply voltage (Vsup) of 3.63V.The digital switch ic is an electronic part classified into Bus Driver/Transceivers.Without the influence of external factors, it consumes 2mA current of multiplexer ic.The performance of the multiplexers of a system can be reliably achieved with a supply voltage of 3.3V.A resistance of 2 governs its operation.A resistance of 8Ohm is used to operate it.
