Name: PI5C16861AE
Brand: Diodes Incorporated
SKU: PI5C16861AE
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-TFSOP (0.240, 6.10mm Width)
Number of Pins	48
Operating Temperature	-40°C~85°C
Packaging	Tube
Published	2010
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
ECCN Code	EAR99
Type	Bus Switch
Resistance	10Ohm
Terminal Finish	Matte Tin (Sn)
Subcategory	Bus Driver/Transceivers
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	2
Supply Voltage	5V
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	40
Base Part Number	16861
Operating Supply Voltage	5V
Circuit	10 x 1:1
Power Supplies	5V
Max Supply Voltage	5.5V
Min Supply Voltage	4.5V
Load Capacitance	50pF
Number of Ports	2
Number of Bits	20
Throw Configuration	SPST
Propagation Delay	1.25 ns
Quiescent Current	10μA
Turn On Delay Time	6.5 ns
Family	CBT/FST/QS/5C/B
Output Characteristics	3-STATE
Supply Type	Single
Output Polarity	TRUE
High Level Output Current	-120mA
Low Level Output Current	120mA
Voltage Supply Source	Single Supply
Independent Circuits	2
Width	6.1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

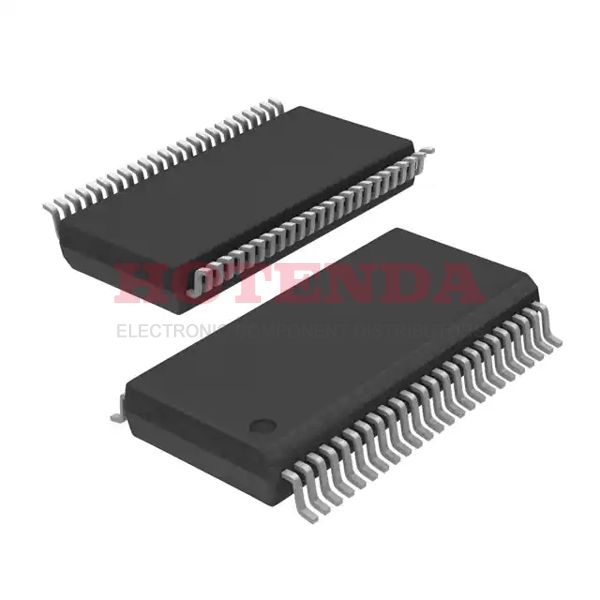

PI5C16861AE Product Details

PI5C16861AE Overview

As a means of saving space, digital switch is provided in the 48-TFSOP (0.240, 6.10mm Width).It is packaged according to the Tube method.The mounting method digital switch ic uses is Surface Mount.The analog IC in the multiplexers is identified as Bus Switch.The operating temperature of -40°C~85°C will not be susceptible to external factors.There are 48 terminations included in its basic configuration.In addition, it also has a base part number of 16861, which can be used to find related parts.For multiplexer's system, a voltage of 5V is supplied.As a result, conductors end at GULL WING.There is a type of supply Single that is employed in this case.The board has 48 pins configured.The mounting point is Surface Mount.The logic switch is a member of the CBT/FST/QS/5C/B family.Signal multiplexer consists of 20 bits.During mux switch's normal operation, 5V is provided with a power supply.In electronic terms, the digital switch ic is classified as part number Bus Driver/Transceivers.Without any external influences, it consumes 10μA current of multiplexer ic at all times.It is possible to achieve reliable performance of the multiplexers with a voltage supply of 5V.The signal switching operates with a resistance of 2.With a resistance of 10Ohm, it operates.The signal switches is specified to operate at the maximum supply voltage of 5.5V in compliance with the applicable device specification.Device specifications require that the minimum supply voltage is 4.5V.
