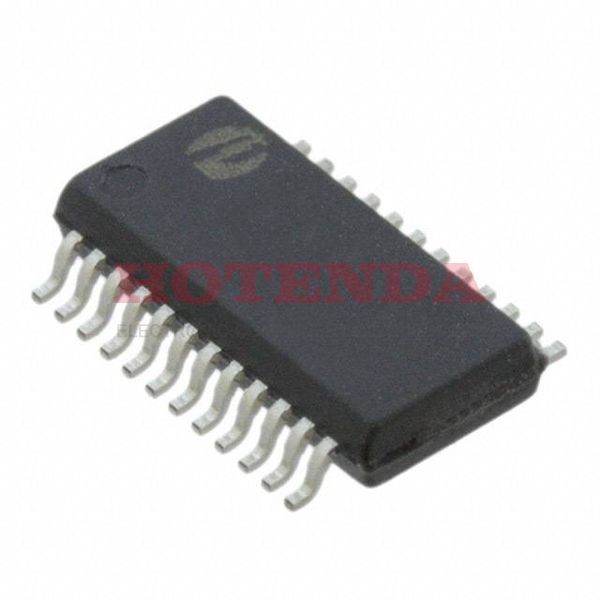

PI5C6800CQE Overview
This is a relatively small item of digital switch that is included in the 24-SSOP (0.154, 3.90mm Width) in order to save space on the board.It is packaged in the way of Tube.digital switch ic uses the method of Surface Mount for mounting.For the analog part of the multiplexers, an IC Bus Switch is used.The operating temperature will not be affected by external factors when turn signal switch is set to -40°C~85°C.With a supply voltage of 4V~5.5V, designers have greater flexibility of digital controlled switch.The base part number is 6800, which can also be used to find its logic switch related parts.
PI5C6800CQE Features
Supplied in the 24-SSOP (0.154, 3.90mm Width) package
PI5C6800CQE Applications
There are a lot of Diodes Incorporated PI5C6800CQE Signal Switches / Multiplexers / Decoders applications.
- Signal router
- Code converters
- Data collection system
- Enabling block of memory depending on address in memory chips
- Recording transmission
- Logic circuits
- Data demultiplexing
- Electronically controlled engine system
- Paper plants
- Telephone network
