Name: 100AWSP1T1B4M2RE
Brand: E-Switch
SKU: 100AWSP1T1B4M2RE
Price: 4.06000 USD
Availability: InStock

new-10%

100AWSP1T1B4M2RE

Manufacturer part number:100AWSP1T1B4M2RE

Manufacturer:E-Switch

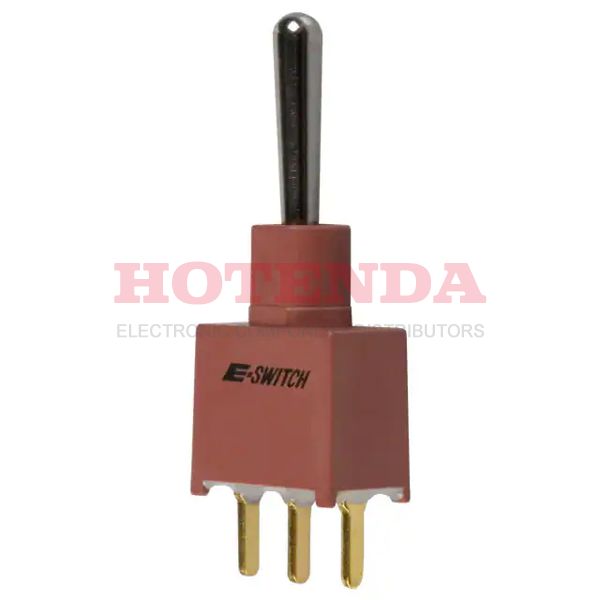

Description:ESWCH 100AWSP1T1B4M2RE Switches > Toggle > Mini Toggle Switch > Sealed

Case Package:SOT-23

Datasheet:100AWSP1T1B4M2RE Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Contact Plating	Gold
Mount	Through Hole
Mounting Type	Through Hole
Actuator Material	Brass, Chrome Plated
Operating Temperature	-30°C~85°C
Packaging	Bulk
Published	2002
Series	100A
Feature	Epoxy Sealed Terminals
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	PC Pin
ECCN Code	EAR99
HTS Code	8536.50.90.65
Voltage - Rated DC	20V
Current Rating (Amps)	0.4VA AC/DC
Orientation	Vertical
Ingress Protection	IP67 - Dust Tight, Waterproof
Current Rating	400mA
Termination Style	PC Pin
Voltage - Rated AC	20V
Body Breadth	6.6 mm
Actuator Type	Standard Round
Circuit	SPDT
Switch Function	On-On
Contact Current(DC)-Max	0.02A
Electrical Life	30,000 Cycles
Illumination	Non-Illuminated
Switch Type	TOGGLE SWITCH
Illumination Type	Illuminated, Non-Illuminated
Bushing Thread	Unthreaded
Contact Current(AC)-Max	0.02A
Contact (AC) Max Rating R Load	.02A@20VAC
Contact (DC) Max Rating R Load	.02A@20VDC
Length	12.8mm
Width	6.91mm
Body Height	10.4mm
Actuator Length	12.70mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
Ratings	Dust Tight, IP67, Waterproof

100AWSP1T1B4M2RE Product Details

Description:
The ESWCH 100AWSP1T1B4M2RE is a sealed mini toggle switch with a single pole single throw (SPST) ON-OFF configuration. It is designed for panel mounting and features solder lug terminals for easy installation. The switch is rated for 0.4VA and can handle up to 28VAC/DC.

Features:
- Sealed mini toggle switch
- SPST ON-OFF configuration
- Panel mount design
- Solder lug terminals
- Rated for 0.4VA
- Can handle up to 28VAC/DC

Applications:
The ESWCH 100AWSP1T1B4M2RE is suitable for a wide range of applications, including industrial, automotive, and consumer electronics. It can be used for controlling power, switching circuits, and other applications where a reliable and durable switch is required.
