Name: EM279502H
Brand: Eaton - Electronics Division
SKU: EM279502H
Price: 1.12000 USD
Availability: InStock

new-10%

EM279502H

Manufacturer part number:EM279502H

Manufacturer:Eaton - Electronics Division

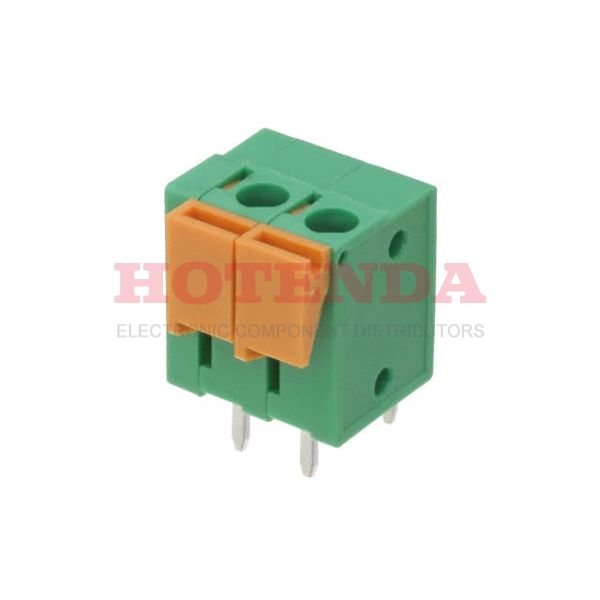

Description:0.200 5.08mm Bulk Thermoplastic Through Hole Vertical with Board Screwless - Push Button Clamp 1 Levels 14-24 AWG Euro-Mag EM2795

Case Package:SOT-23

Datasheet:EM279502H Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Contact Material	Tin
Contact Plating	Brass, Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic
Weight	2.267962g
Contact Material - Plating	Brass - Tin Plated
Operating Temperature	-40°C~105°C
Packaging	Bulk
Series	Euro-Mag EM2795
Published	2005
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Number of Positions	2
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Number of Rows	1
Voltage - Rated	300V
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	13mm
Current Rating	10A
Number of Contacts	2
Wire Gauge	14-24 AWG
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	14 AWG
Number of Poles	2
Positions Per Level	2
Mating Orientation	Vertical with Board
Wire Termination	Screwless - Push Button Clamp
Number of Positions Per Level	2
Height	13.97mm
Length	12.7mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

EM279502H Product Details

EM279502H Overview

This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Euro-Mag EM2795 Series.If the temperature is below 105°C, it's best to use it.-40°C is the minimum temperature for this device.There is a mounting hole at Through Hole.Devices operate at -40°C~105°C operating temperatures.There should be no voltage above 0 on the supply line for this chip.
