09300100233

09300100233

09300100233

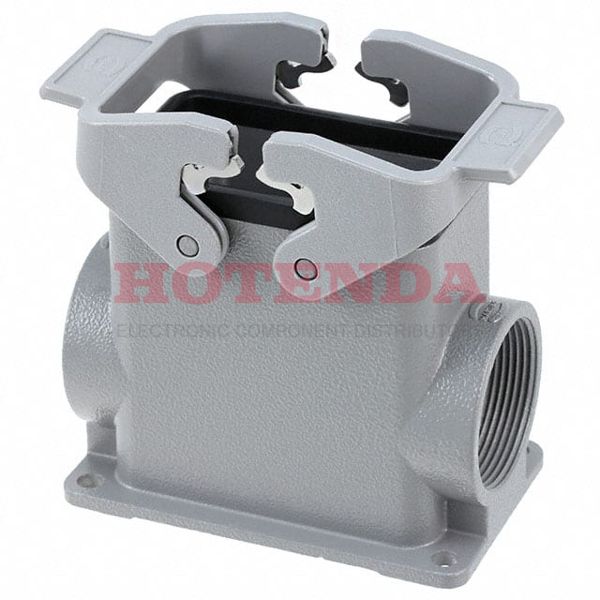

HARTING

09300100233 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300100233 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Base
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 3.701Lx2.244W x 3.181 H 94.00mmx57.00mmx80.80mm
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Base - Box Mount
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 10B
Thread SizePG29
Lock Location Locking Clip (2) on Base Bottom
Housing Finish Powder Coated
Height 80.7974mm
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:198 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$46.900053$46.900053
10$44.245333$442.45333
100$41.740880$4174.088
500$39.378188$19689.094
1000$37.149234$37149.234

09300100233 Product Details

09300100233 Overview


A Base - Box Mount package is included with it.This product is packaged in a case marked Bulk.A member of the Han? B Series.This part is mounted by Base. -40°C~125°C Operating Temperature is the default.

09300100233 Features


Han? B series

09300100233 Applications


There are a lot of HARTING 09300100233 Heavy Duty Connectors applications.

  • Electrical substations
  • Energy efficient lighting (LED)
  • Transportation
  • Industrial Automation
  • Anywhere power is distributed
  • Refrigeration control
  • LED municipal outdoor and street lighting
  • Data Technology
  • Communication
  • Datacom
