09300100752

09300100752

09300100752

HARTING

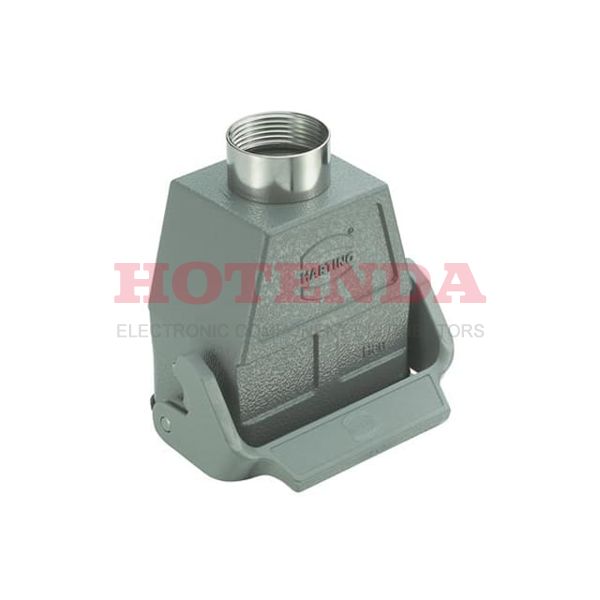

09300100752 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300100752 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Package / Case Metal
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 2.858Lx1.693W x 2.929 H 72.60mmx43.00mmx74.40mm
Feature Cable to Cable
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Cable
Connector Type Hood - Coupling
Number of Positions 3
Gender Female
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Bottom Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 10B
Thread SizePG21
Lock Location Locking Clip (1) on Hood Top
Housing Finish Powder Coated
Height 74.3966mm
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:130 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$75.517000$75.517
10$71.242453$712.42453
100$67.209861$6720.9861
500$63.405529$31702.7645
1000$59.816537$59816.537

09300100752 Product Details

09300100752 Overview


This product is packaged in a Hood - Coupling carton.A Bulk case is used to package the product.The product is part of the Han? B Series.The packaging with the Metal contains a device.With its Cable to Cable feature, it is more powerful in many ways.In this case, the device runs at -40°C~125°C Operating Temperature.

09300100752 Features


Han? B series

09300100752 Applications


There are a lot of HARTING 09300100752 Heavy Duty Connectors applications.

  • Instrumentation
  • Anywhere power is distributed
  • Medical technology
  • Data Technology
  • All Electrical Machinery
  • Blowers
  • Variable speed/frequency drivers
  • Communication
  • Embedded systems
  • Electrical substations
