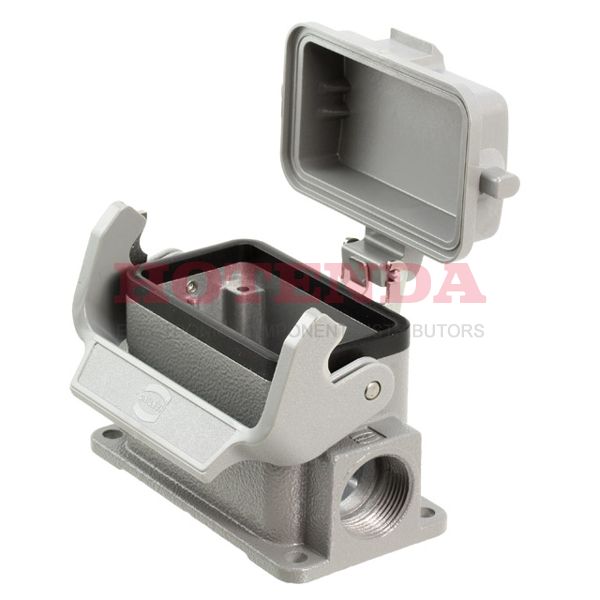

HARTING

09300101256 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300101256 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Housing Material Aluminum, Die Cast
Body Material Aluminium
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 3.701Lx2.047W x 2.118 H 94.00mmx52.00mmx53.80mm
Feature Cover
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Cable
Connector Type Base - Box Mount
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 10B
Thread SizePG16
Lock Location Locking Clip (1) on Base Bottom
Housing Finish Powder Coated
Height 53.7972mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:272 items

Pricing & Ordering

QuantityUnit PriceExt. Price
9$49.07889$441.71001

09300101256 Product Details

09300101256 Overview


This product is packaged in a Base - Box Mount box.A Bulk case is used to package the product.It's from the Han? B Series.This feature makes it more powerful in a number of ways due to its Cover feature.This device runs at -40°C~125°C operating temperature.

09300101256 Features


Han? B series

09300101256 Applications


There are a lot of HARTING 09300101256 Heavy Duty Connectors applications.

  • Military Technology
  • Datacom
  • Blowers
  • Instrumentation
  • LED municipal outdoor and street lighting
  • Embedded systems
  • Medical technology
  • Telecommunications
  • Refrigeration control
  • Control panels
