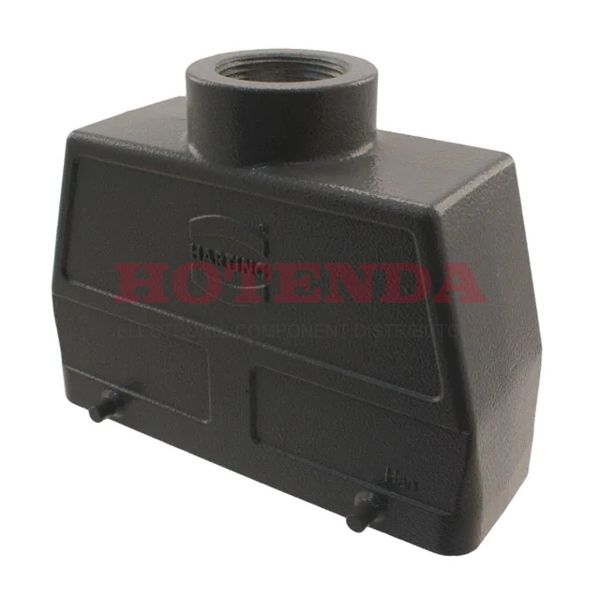

09300240420

09300240420

09300240420

HARTING

09300240420 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300240420 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 5 Weeks
Package / Case Metal
Housing Material Aluminum, Die Cast
Body Material Aluminium
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 4.724Lx1.693W x 3.622 H 120.00mmx43.00mmx92.00mm
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
Connector Type Hood
Number of Positions 8
Gender Female
Orientation Straight
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Depth 57mm
Style Top Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 24B
Thread SizePG21
Lock Location Locking Clip (2) on Base Bottom
Housing Finish Powder Coated
Height 91.9988mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:258 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$33.47000$33.47
10$30.21000$302.1
25$28.94400$723.6
50$27.13500$1356.75
100$26.23050$2623.05
250$24.78332$6195.83

09300240420 Product Details

09300240420 Overview


A Hood packaging is included.It has been determined that a Bulk case is necessary to package the product.It's part of the Han? B Series.Packages with the Metal enclose a device.It operates at an operating temperature of -40°C~125°C.

09300240420 Features


Han? B series

09300240420 Applications


There are a lot of HARTING 09300240420 Heavy Duty Connectors applications.

  • Measuring & Control Technology
  • Variable speed/frequency drivers
  • Medical technology
  • Instrumentation
  • All Electrical Machinery
  • Automotive Electronics
  • Datacom
  • Control panels
  • Anywhere power is distributed
  • Telecommunications
