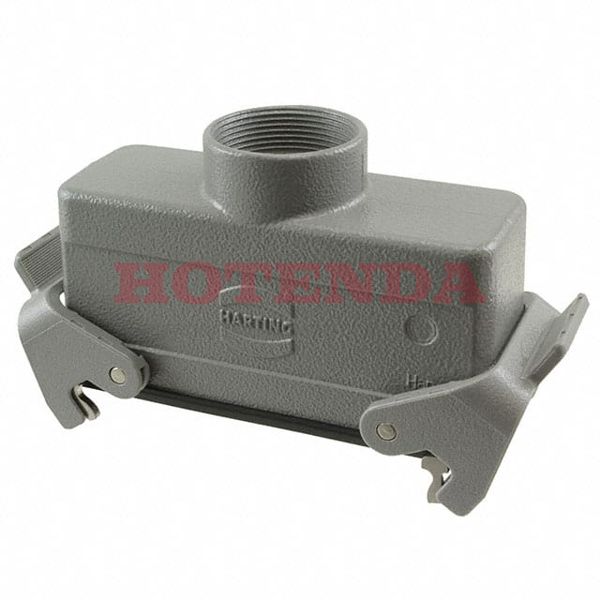

HARTING

09300241731 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300241731 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 5 Weeks
Package / Case Metal
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 4.724Lx1.693W x 2.260 H 120.00mmx43.00mmx57.40mm
Feature Cable to Cable
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Cable
Connector Type Hood - Coupling
Number of Positions 8
Gender Female
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Bottom Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 24B
Thread SizePG29
Lock Location Locking Clip (2) on Hood Top
Housing Finish Powder Coated
Height 57.404mm
RoHS StatusROHS3 Compliant
Lead Free Lead Free
Ratings Dust Tight, IP65, Water Resistant
In-Stock:250 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$42.96000$42.96
10$38.77700$387.77
25$37.15200$928.8
50$34.83000$1741.5
100$33.66900$3366.9
250$31.81140$7952.85

09300241731 Product Details

09300241731 Overview


Packaging for this item is Hood - Coupling.Packaging for the product is carried out via a Bulk case.This is from the Han? B Series.Metal indicates that the package contains an enclosed device.A number of advantages can be derived from its Cable to Cable feature.The device is operating at -40°C~125°C Operating Temperature.

09300241731 Features


Han? B series

09300241731 Applications


There are a lot of HARTING 09300241731 Heavy Duty Connectors applications.

  • All Electrical Machinery
  • Instrumentation
  • Datacom
  • Anywhere power is distributed
  • Medical technology
  • Variable speed/frequency drivers
  • Military Technology
  • Electrical substations
  • Measuring & Control Technology
  • Energy efficient lighting (LED)
