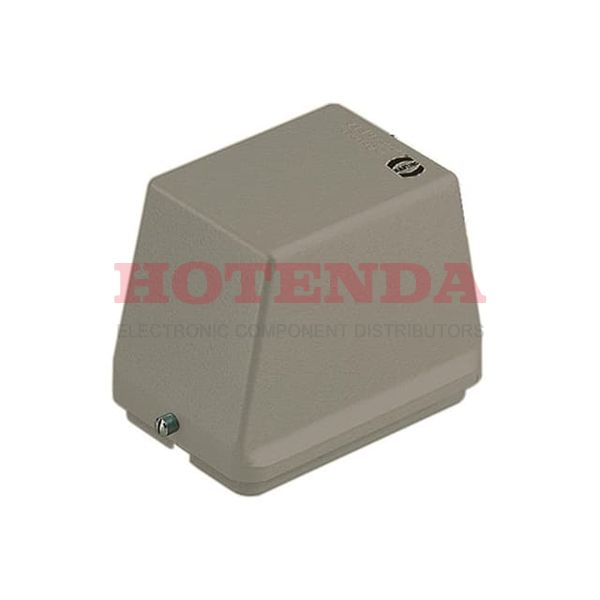

HARTING

09300480542 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

09300480542 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Package / Case Metal
Housing Material Aluminum, Die Cast
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 5.197Lx3.543W x 3.839 H 132.00mmx90.00mmx97.50mm
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Hood
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 48B
Thread SizePG42
Lock Location Locking Clip (1) on Base Bottom
Housing Finish Powder Coated
Height 97.5106mm
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:125 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$75.626918$75.626918
10$71.346150$713.4615
100$67.307688$6730.7688
500$63.497819$31748.9095
1000$59.903603$59903.603

09300480542 Product Details

09300480542 Overview


The product comes in a package of Hood.An orange Bulk case is used to package the product.It is part of the Han? B Series of products.Metal refers to a package enclosing a device.-40°C~125°C Operating Temperature is the default operating temperature for the device.

09300480542 Features


Han? B series

09300480542 Applications


There are a lot of HARTING 09300480542 Heavy Duty Connectors applications.

  • Military Technology
  • Automotive Electronics
  • Electrical substations
  • Communication
  • Variable speed/frequency drivers
  • Anywhere power is distributed
  • Measuring & Control Technology
  • All Electrical Machinery
  • Refrigeration control
  • Data Technology
