14020616402000

14020616402000

14020616402000

HARTING

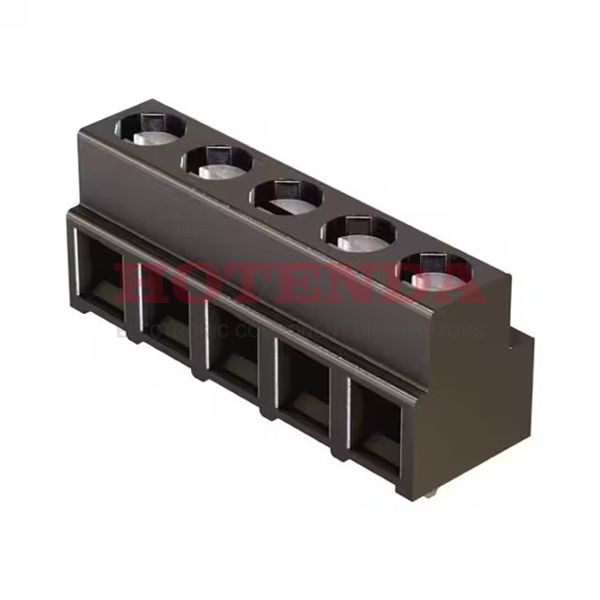

0.197 5.00mm Black Bulk Polyamide (PA), Nylon Through Hole Horizontal with Board Screw 1 Levels 16-30 AWG har-flexicon®

SOT-23

14020616402000 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide (PA), Nylon
Contact Material - Plating Copper Alloy - Tin Plated
Operating Temperature-40°C~110°C
PackagingBulk
Series har-flexicon®
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Terminal Block
Number of Positions 6
Color Black
Voltage - Rated 300V
Pitch 0.197 5.00mm
Orientation Horizontal
Current Rating13.5A
Wire Gauge16-30 AWG
Number of Levels 1
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 16 AWG
Wire/Cable Gauge 30 AWG
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Positions Per Level 6
Mating Orientation Horizontal with Board
Wire TerminationScrew
Screw Thread M3
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:2889 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.227000$1.227
10$1.157547$11.57547
100$1.092026$109.2026
500$1.030213$515.1065
1000$0.971899$971.899

14020616402000 Product Details

14020616402000 Overview


The packaging contains Terminal Block.There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number har-flexicon® belongs to the har-flexicon® Series.There is a Through Hole mount on the part.This device operates at a temperature of -40°C~110°C.

14020616402000 Features


har-flexicon® series


14020616402000 Applications


There are a lot of HARTING
14020616402000 Terminal Blocks applications.


  • Medical technology
  • Military Technology
  • Measuring & Control Technology
  • Instrumentation
  • Automotive Electronics
  • Telecommunications
  • Data Technology
  • Blowers
  • Control panels
  • Electrical substations
