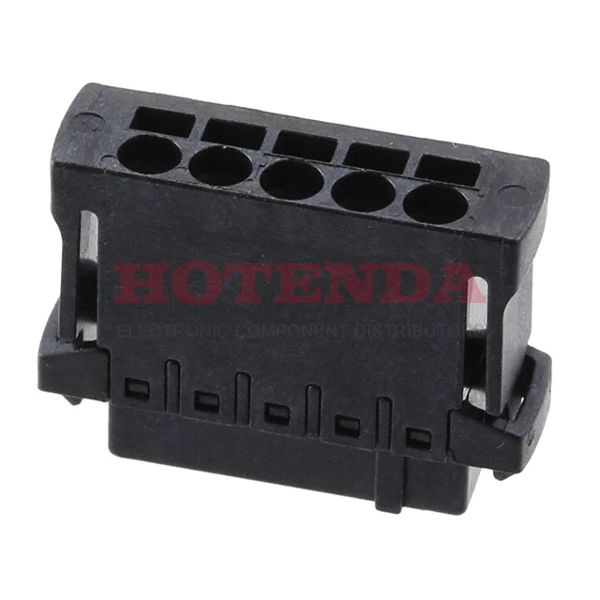

Name: 14310513101000
Brand: HARTING
SKU: 14310513101000
Price: 1.87000 USD
Availability: InStock

new-10%

14310513101000

Manufacturer part number:14310513101000

Manufacturer:HARTING

Description:14310513101000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:14310513101000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Glass fibre, Polymer
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	har-flexicon®
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Receptacle
Voltage - Rated	160V
Subcategory	Headers and Edge Type Connectors
Pitch	0.100 2.54mm
Total Number of Contacts	5
Orientation	Vertical
Depth	14.2mm
Insulation Height	0.193 4.90mm
Current Rating	7.3A
Reference Standard	UL
Termination Style	Screwless - Spring Cage, Tension Clamp
Reliability	COMMERCIAL
Contact Style	SQ PIN-SKT
Contact Resistance	20mOhm
Voltage	160V
Polarization Key	POLARIZED HOUSING
Number of Levels	1
Current	6A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Contact Pattern	RECTANGULAR
Insertion Force-Max	4.8928 N
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	20-26 AWG
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	6mm
Number of Positions Per Level	5
Wire Size (Min)	24 AWG
Length	18mm
Width	4.9mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

14310513101000 Product Details

14310513101000 Overview

A Free Hanging (In-Line) mounting type is specified for the device.An orange Bulk case is used to package the product.This product is from the har-flexicon? Series.Many aspects of its Latch Lock feature increase its effectiveness.There is a mounting hole at Free Hanging, Panel.-40°C~125°C Operating Temperature is what the device runs at.Several of the benefits of this part are also shared by other Plug, Female Sockets products.
