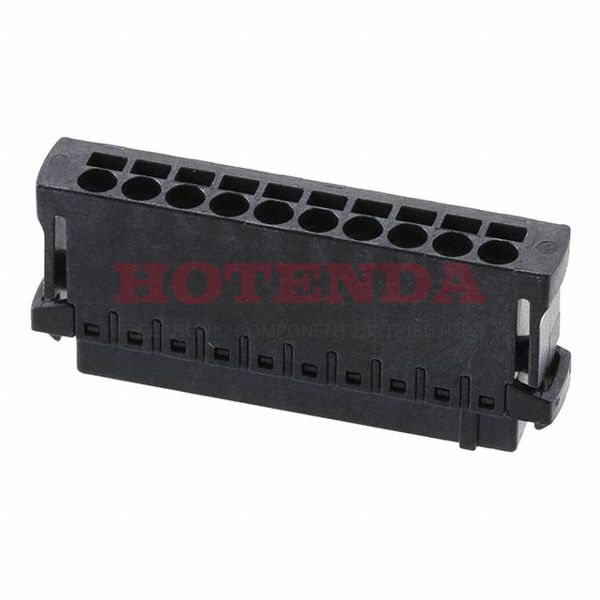

Name: 14311013101000
Brand: HARTING
SKU: 14311013101000
Price: 4.15000 USD
Availability: InStock

new-10%

14311013101000

Manufacturer part number:14311013101000

Manufacturer:HARTING

Description:14311013101000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:14311013101000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Glass fibre, Polymer
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	har-flexicon®
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Gender	Receptacle
Voltage - Rated	160V
Subcategory	Headers and Edge Type Connectors
Pitch	0.100 2.54mm
Total Number of Contacts	10
Orientation	Vertical
Depth	14.2mm
Insulation Height	0.193 4.90mm
Current Rating	7.3A
Reference Standard	UL
Termination Style	Screwless - Spring Cage, Tension Clamp
Reliability	COMMERCIAL
Contact Style	SQ PIN-SKT
Contact Resistance	20mOhm
Voltage	160V
Polarization Key	POLARIZED HOUSING
Number of Levels	1
Current	6A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	20 AWG
Contact Pattern	RECTANGULAR
Insertion Force-Max	4.8928 N
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	20-26 AWG
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	6mm
Number of Positions Per Level	10
Wire Size (Min)	24 AWG
Length	30.7mm
Width	4.9mm
Material Flammability Rating	UL94 V-0
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

14311013101000 Product Details

14311013101000 Overview

The mounting type of the device is Free Hanging (In-Line).A Bulk case is used to package the product.Product number har-flexicon? belongs to the har-flexicon? Series.With its Latch Lock feature, it is more powerful in many ways.It's mounted by Free Hanging, Panel.Device runs at -40°C~125°C Operating Temperature.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
