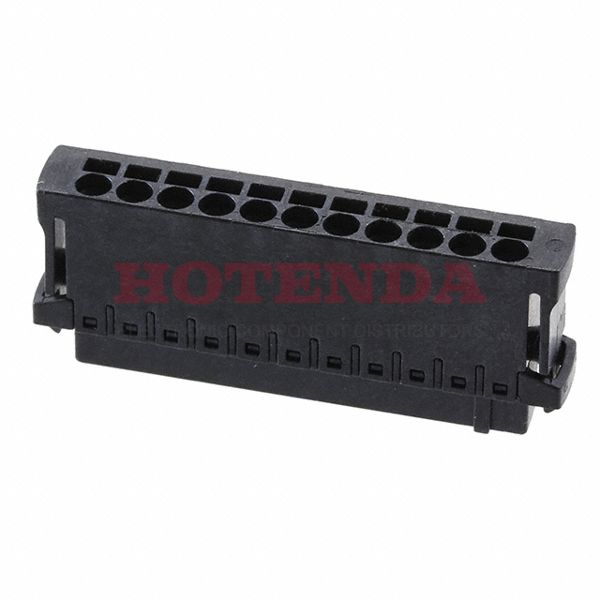

Name: 14311113101000
Brand: HARTING
SKU: 14311113101000
Price: 4.67000 USD
Availability: InStock

new-10%

14311113101000

Manufacturer part number:14311113101000

Manufacturer:HARTING

Description:14311113101000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from HARTING stock available on our website

Case Package:SOT-23

Datasheet:14311113101000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper Alloy
Mounting Type	Free Hanging (In-Line)
Housing Material	Liquid Crystal Polymer (LCP), Glass Filled
Mounting Option 1	LOCKING
Operating Temperature	-40°C~125°C
Packaging	Bulk
Series	har-flexicon®
Feature	Latch Lock
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Type	Plug, Female Sockets
Number of Positions	11
Color	Black
Number of Rows	1
Subcategory	Headers and Edge Type Connectors
Pitch	0.100 2.54mm
Total Number of Contacts	11
Insulation Height	0.193 4.90mm
Reference Standard	UL
Termination Style	Screwless - Spring Cage, Tension Clamp
Reliability	COMMERCIAL
Body Depth	0.559 inch
Rated Current (Signal)	6A
Contact Style	SQ PIN-SKT
Contact Resistance	20mOhm
Polarization Key	POLARIZED HOUSING
Number of Levels	1
Contact Pattern	RECTANGULAR
Insertion Force-Max	4.8928 N
Contact Mating Finish	Tin
Voltage - UL	160V
Wire Gauge or Range - AWG	20-26 AWG
Current - UL	6A
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Wire Strip Length	6mm
Wire Size (Min)	24 AWG
Wire Size (Max)	20 AWG
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

14311113101000 Product Details

14311113101000 Overview

Free Hanging (In-Line) is the type of mounting for the device.It's packaged in a Bulk case.This is from the har-flexicon? Series.With its Latch Lock feature, it is more powerful in many ways.This device runs at -40°C~125°C operating temperature.
