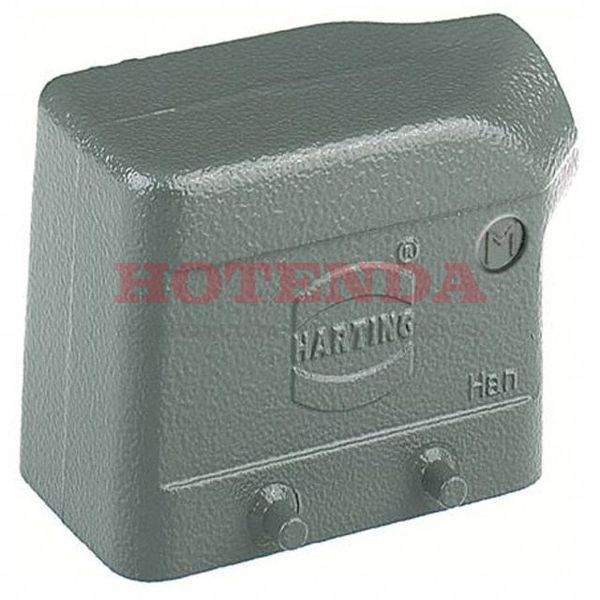

HARTING

19300101520 datasheet pdf and Heavy Duty Connectors - Housings, Hoods, Bases product details from HARTING stock available on our website

SOT-23

19300101520 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Package / Case Metal
Number of Pins 9
Housing Material Aluminum, Die Cast
Body Material Aluminium, Metal
Operating Temperature-40°C~125°C
PackagingBulk
Series Han® B
Size / Dimension 2.858Lx1.693W x 2.244 H 72.60mmx43.00mmx57.00mm
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Hood
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Style Side Entry
Housing Color Gray
Connector Support Type CONNECTOR ACCESSORY
Size 10B
Thread SizeM20
Lock Location Locking Clip (2) on Base Bottom
Housing Finish Powder Coated
Height 56.9976mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
Ratings Dust Tight, IP65, Water Resistant
In-Stock:433 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$16.84000$16.84
10$15.63900$156.39
25$14.03520$350.88
50$13.63400$681.7
100$12.03000$1203
250$11.22800$2807
500$10.98740$5493.7

19300101520 Product Details

19300101520 Overview


The packaging is Hood.The product is packaged in a Bulk case.It is part of the Han? B Series of products.A device with a 9 pin configuration is equipped with the device.Located in the packaging with the Metal is a device.The device is operating at -40°C~125°C Operating Temperature.

19300101520 Features


Han? B series

19300101520 Applications


There are a lot of HARTING 19300101520 Heavy Duty Connectors applications.

  • Industrial Automation
  • Blowers
  • Measuring & Control Technology
  • All Electrical Machinery
  • Data Technology
  • Electrical substations
  • Control panels
  • Anywhere power is distributed
  • Communication
  • Medical technology
