Name: ICE3B1565FKLA1
Brand: Infineon Technologies
SKU: ICE3B1565FKLA1
Availability: InStock

new-10%

ICE3B1565FKLA1

Manufacturer part number:ICE3B1565FKLA1

Manufacturer:Infineon Technologies

Description:8 Terminations8.5V~21V ICE3B1565 AC to DC power converterCoolMOS?, CoolSET?F3 Series 67kHz

Case Package:SOT-23

Datasheet:ICE3B1565FKLA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	8-DIP (0.300, 7.62mm)
Surface Mount	NO
Operating Temperature	-25°C~130°C TJ
Packaging	Tube
Published	2013
Series	CoolMOS™, CoolSET™F3
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Power (Watts)	42W
HTS Code	8542.39.00.01
Subcategory	Switching Regulator or Controllers
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	2.54mm
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	ICE3B1565
Pin Count	8
JESD-30 Code	R-PDIP-T8
Qualification Status	Not Qualified
Input Voltage-Nom	15V
Analog IC - Other Type	SWITCHING REGULATOR
Voltage - Supply (Vcc/Vdd)	8.5V~21V
Control Features	Soft Start
Input Voltage (Min)	9V
Topology	Flyback
Control Mode	CURRENT-MODE
Frequency - Switching	67kHz
Input Voltage (Max)	21V
Control Technique	PULSE WIDTH MODULATION
Switcher Configuration	SINGLE
Internal Switch(s)	Yes
Fault Protection	Current Limiting, Open Loop, Over Load, Over Temperature, Over Voltage
Duty Cycle	72%
Output Isolation	Isolated
Voltage - Breakdown	650V
Voltage - Start Up	15V
Height Seated (Max)	4.37mm
Length	9.52mm
Width	7.62mm
RoHS Status	RoHS Compliant

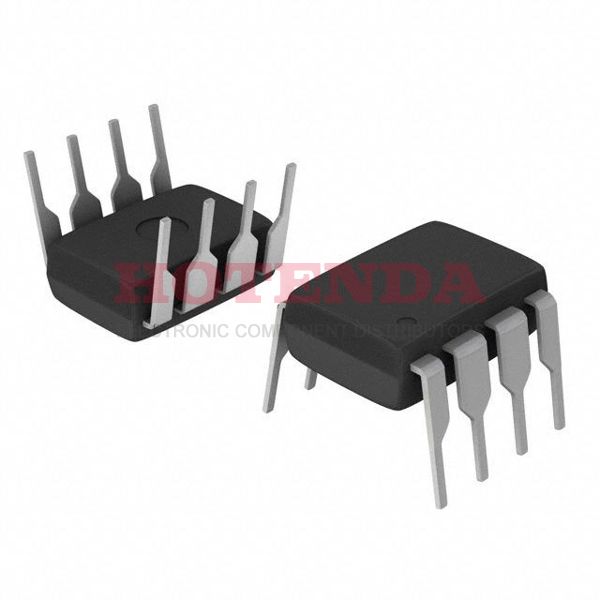

ICE3B1565FKLA1 Product Details

ICE3B1565FKLA1 Overview

A ac to dc converter of the package 8-DIP (0.300, 7.62mm) contains the ac to dc converter.Tube case is available for the ac dc converter.It is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -25°C~130°C TJ °C in order to achieve its full performance.A SWITCHING REGULATOR analog integrated circuit is used in this AC DC converter.There is 67kHz switching frequency.Supply voltage (Vcc/Vdd) does not need to exceed 8.5V~21V .There have been 8 terminations of this program.The pins of the ac-dc converter count up to 8 .It is a member of CoolMOS?, CoolSET?F3 manufacturer family.The ICE3B1565 family can be used to search for similar acdc converters.Switching Regulator or Controllers includes the ac to dc conversions.With the aid of a unique technique, it is possible to ensure that the input voltage will be at the maximum value of 21V .
