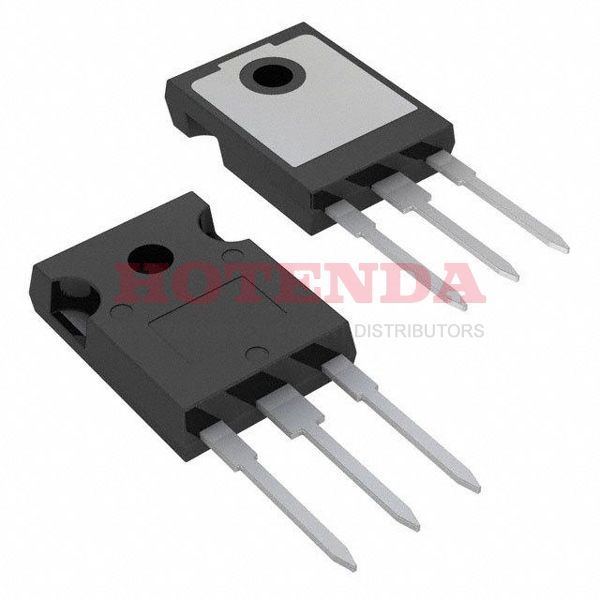

IDW12G65C5FKSA1

Name: IDW12G65C5FKSA1
Brand: Infineon Technologies
SKU: IDW12G65C5FKSA1
Availability: InStock

new-10%

Manufacturer part number:IDW12G65C5FKSA1

Manufacturer:Infineon Technologies

Description:IDW12G65C5FKSA1 datasheet pdf and Diodes - Rectifiers - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:IDW12G65C5FKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	TO-247-3
Surface Mount	NO
Packaging	Tube
Published	2013
Series	CoolSiC™+
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Tin (Sn)
Additional Feature	HIGH RELIABILITY
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSFM-T3
Operating Temperature (Max)	175°C
Number of Elements	1
Configuration	SINGLE
Power Dissipation-Max	76W
Speed	No Recovery Time > 500mA (Io)
Diode Type	Silicon Carbide Schottky
Current - Reverse Leakage @ Vr	500μA @ 650V
Voltage - Forward (Vf) (Max) @ If	1.7V @ 12A
Case Connection	CATHODE
Operating Temperature - Junction	-55°C~175°C
Output Current-Max	12A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	650V
Current - Average Rectified (Io)	12A DC
Number of Phases	1
Reverse Recovery Time	0ns
Rep Pk Reverse Voltage-Max	650V
Capacitance @ Vr, F	360pF @ 1V 1MHz
Non-rep Pk Forward Current-Max	505A
Reverse Current-Max	190μA
RoHS Status	ROHS3 Compliant
