Name: IPS031R
Brand: Infineon Technologies
SKU: IPS031R
Availability: InStock

new-10%

IPS031R

Manufacturer part number:IPS031R

Manufacturer:Infineon Technologies

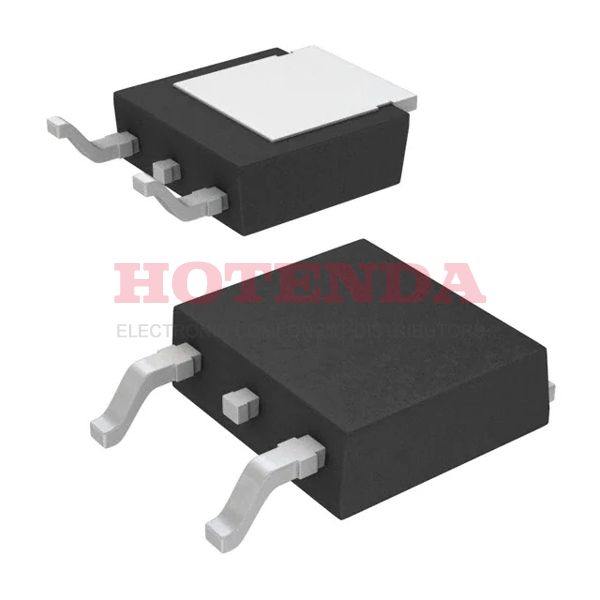

Description:N-Channel 2.28mm PMIC 14V TO-252-3, DPak (2 Leads + Tab), SC-63

Case Package:SOT-23

Datasheet:IPS031R Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Surface Mount	YES
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
Published	2004
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Supply Voltage	14V
Terminal Pitch	2.28mm
[email protected] Reflow Temperature-Max (s)	30
JESD-30 Code	R-PSSO-G2
Number of Outputs	1
Qualification Status	Not Qualified
Output Type	N-Channel
Interface	On/Off
Current - Output (Max)	3.3A
Output Configuration	Low Side
Voltage - Supply (Vcc/Vdd)	Not Required
Input Type	Non-Inverting
Switch Type	General Purpose
Ratio - Input:Output	1:1
Voltage - Load	35V Max
Fault Protection	Current Limiting (Fixed), Over Temperature
Turn On Time	0.6 µs
Rds On (Typ)	45m Ω
Turn Off Time	3.5 µs
Built-in Protections	OVER CURRENT; THERMAL
Output Current Flow Direction	SINK
Height Seated (Max)	2.38mm
Length	6.54mm
Width	6.095mm
RoHS Status	Non-RoHS Compliant

IPS031R Product Details

IPS031R Overview

A Tube is used to package it.There is a package for it in the TO-252-3, DPak (2 Leads + Tab), SC-63 package.The lighting driver is mounted in the Surface Mount position.The switch type of this switch is General Purpose.Ensure reliable operation by setting the temperature to -40°C~150°C TJ.The LED driver has a total of 1 outputs.The LED driving board is powered by a voltage of Not Required.It has a maximum output voltage of N-Channel volts.The termination count is 2.The LED driver has 1 functions.This LED driver has a maximum output of 3.3AV.High efficiency is possible at 14V supply voltage.
