TLF42772ELXUMA2 Overview

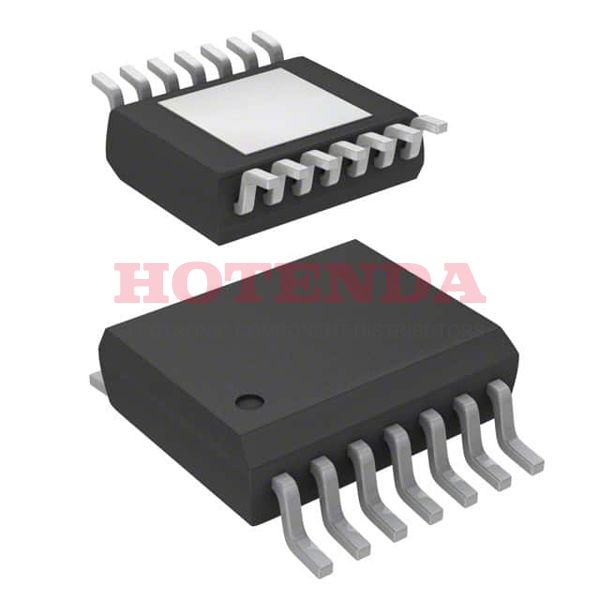

In a Tape & Reel (TR) case, the IC voltage regulator is delivered. A 14-LSSOP (0.154, 3.90mm Width) Exposed Pad case contains the Liner IC. In total, there are 14 terminations on the gadget. This PMIC chip has an output type of Adjustable. In this electrical part, there are 1 regulators that are implemented. Voltage Regulated IC Surface Mount varies its operating temperature range. The IC Voltage Regulator's operating temperature is -40°C~150°C TJ degrees. Currently, this regulator IC has an output function configured as Positive as its output function. There is a 10 volt dropout voltage on this transistor. A 14-pin is present on the chip. A maximum output current of 300mA is required to meet the operation requirements. It operates in the 150μA Quiescent Current state. In fact, it is voltage regulator IC of the Automotive, AEC-Q100, OPTIREG™ Series of cameras. The top supply voltage is 45V volts.
TLF42772ELXUMA2 Features
200mV dropout voltage
TLF42772ELXUMA2 Applications
There are a lot of Infineon Technologies
TLF42772ELXUMA2 Linear Voltage Regulators applications.
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
