EL5624IREZ-T7 Overview

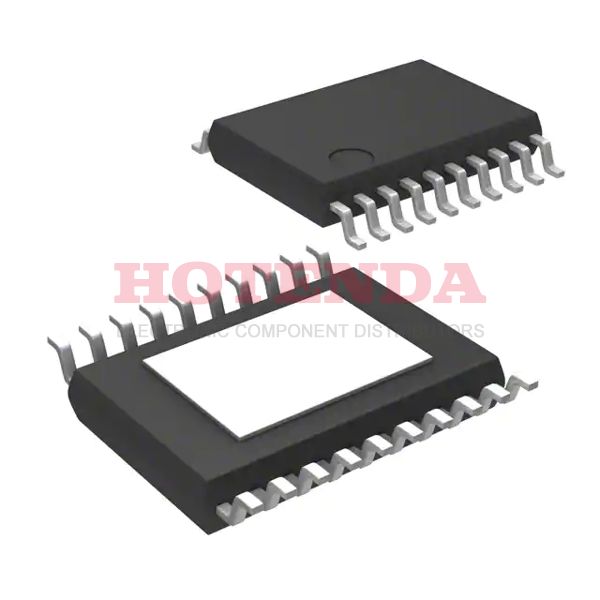

Op amp is packaged in HTSSOP EP case. Op amps are BUFFER types of amplifier on the chip. Instrumentation amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 20. Linear amplifier has a total of 20 pins. Please take in mind that op amp should be run at 15V. Regarding input offset voltage, buffer amplifier rates 14mV voltage. Operational amplifier can operate supply current at 6.8mA. The voltage gain should stay at 0.069dB. Instrumentation amplifier has 6 channels on it. It should not lower than -40°C to operate buffer amplifier. It is recommended that op amp be used at temperatures below 85°C. The operating supply voltage of instrumentation amplifier is rated 8.25V voltage.
EL5624IREZ-T7 Features
20 Pins
supply voltage of 15V
0.069dB voltage gain
EL5624IREZ-T7 Applications
There are a lot of Intersil (Renesas Electronics America)
EL5624IREZ-T7 Instrumentational OP Amps applications.
- Proportional operation circuits
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
