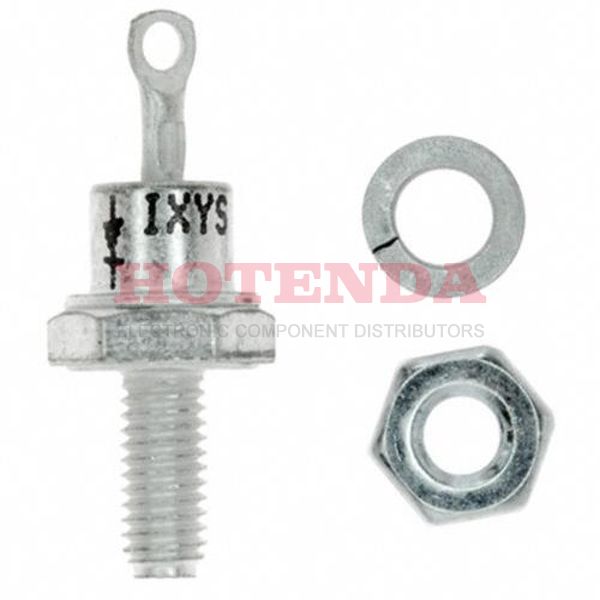

DSA17-18A

Manufacturer part number:DSA17-18A

Manufacturer:IXYS

Description:DSA17-18A datasheet pdf and Diodes - Rectifiers - Single product details from IXYS stock available on our website

Case Package:SOT-23

Datasheet:DSA17-18A Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mount	Chassis, Stud
Mounting Type	Chassis, Stud Mount
Package / Case	DO-203AA, DO-4, Stud
Number of Pins	2
Diode Element Material	SILICON
Packaging	Bulk
Published	2000
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	1
ECCN Code	EAR99
Max Operating Temperature	180°C
Min Operating Temperature	-40°C
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	UPPER
Terminal Form	SOLDER LUG
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	1
JESD-30 Code	O-MUPM-D1
Qualification Status	Not Qualified
Number of Elements	1
Element Configuration	Single
Speed	Standard Recovery >500ns, > 200mA (Io)
Diode Type	Avalanche
Current - Reverse Leakage @ Vr	4mA @ 1800V
Voltage - Forward (Vf) (Max) @ If	1.36V @ 55A
Case Connection	ANODE
Forward Current	25A
Operating Temperature - Junction	-40°C~180°C
Max Surge Current	370A
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	1800V
Forward Voltage	1.36V
Max Reverse Voltage (DC)	1.8kV
Average Rectified Current	25A
Number of Phases	1
Peak Reverse Current	4mA
Max Repetitive Reverse Voltage (Vrrm)	1.8kV
Peak Non-Repetitive Surge Current	400A
Reverse Voltage	1.8kV
Max Forward Surge Current (Ifsm)	400A
Height	31.32mm
Width	11mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

DSA17-18A Product Details

DSA17-18A Overview

An appropriate reverse voltage is 1.8kV.Devices like this have an average rectified current of 25A volts.A value of 25A is the maximum forward current that can be allowed.There can be no surge current above 370A.On the data sheets, the peak reverse is indicated by the data chart as 4mA.
