LTC1047CN8 Overview

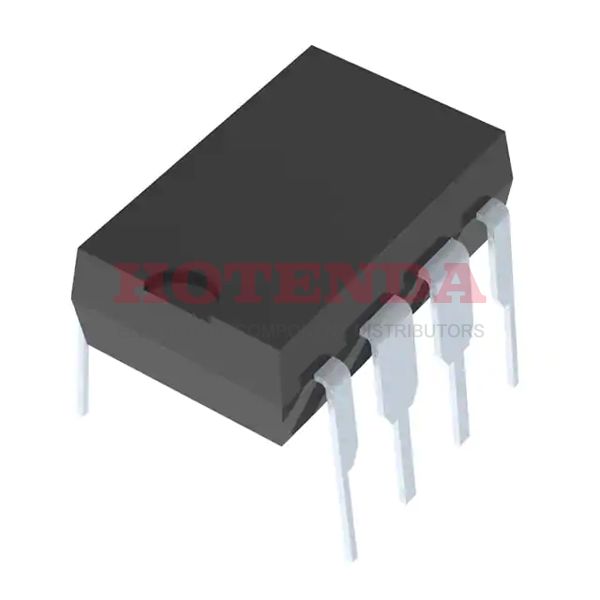

In order to protect the op amps, a 8-DIP (0.300, 7.62mm) case is used. Chopper (Zero-Drift)-type instrumentation amplifiers are used in this application. A Tube case is used to deliver the buffer op amp. The number of terminations is approaching the 8 mark. There are a total of 8 pins on this op amp. Please take in mind that op amp should be run at 5V. It should be noted that this op amp is a type of Operational Amplifier device. In total, the buffer amplifier consists of 8 pins. The input offset voltage is 3μV. The mounting type that is recommended for this electrical part is Through Hole. According to the manufacturer, this buffer op amp works well at 0°C~70°C , which is a good operating temperature. Using a supply current of 60μA , this buffer op amp will be able to operate. The voltage gain should stay at 150dB. According to the specifications of the buffer op amp, the operating supply voltage is rated at 2.
LTC1047CN8 Features
8 Pins
supply voltage of 5V
150dB voltage gain
LTC1047CN8 Applications
There are a lot of Linear Technology/Analog Devices LTC1047CN8 Instrumentational OP Amps applications.
- High input resistance broadband
- Strain gauges
- Power control
- Home audio systems
- PDA
- Medical imaging
- Communication
- Band-stop filter
- Integrator circuits
- Portable media players
