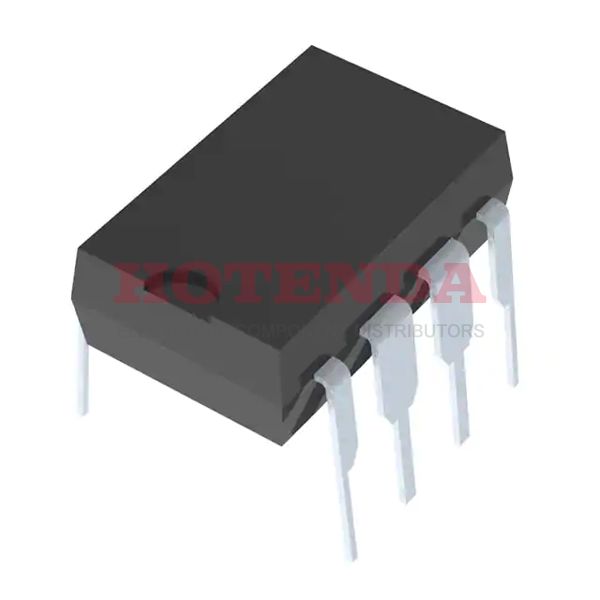

Name: LTC1052CN8
Brand: Linear Technology/Analog Devices
SKU: LTC1052CN8
Availability: InStock

new-10%

LTC1052CN8

Manufacturer part number:LTC1052CN8

Manufacturer:Linear Technology/Analog Devices

Description:140 dB Instrumentational OP Amps LTC1052 8 Pins 8-DIP (0.300, 7.62mm)

Case Package:SOT-23

Datasheet:LTC1052CN8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Through Hole
Package / Case	8-DIP (0.300, 7.62mm)
Surface Mount	NO
Packaging	Tube
Published	2002
JESD-609 Code	e0
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Tin/Lead (Sn/Pb)
Subcategory	Operational Amplifier
Technology	CMOS
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	2.54mm
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	LTC1052
Pin Count	8
JESD-30 Code	R-PDIP-T8
Qualification Status	Not Qualified
Operating Temperature (Max)	85°C
Operating Temperature (Min)	-40°C
Power Supplies	+-5V
Temperature Grade	INDUSTRIAL
Number of Circuits	1
Supply Current-Max	3mA
Slew Rate	4V/μs
Architecture	CHOPPER-STAB
Amplifier Type	General Purpose
Common Mode Rejection Ratio	140 dB
Neg Supply Voltage-Nom (Vsup)	-5V
Unity Gain BW-Nom	1200 kHz
Low-Offset	YES
Frequency Compensation	YES
Supply Voltage Limit-Max	9V
Low-Bias	YES
Micropower	NO
Bias Current-Max (IIB) @25C	0.00003μA
Programmable Power	NO
Neg Supply Voltage-Max (Vsup)	-9V
Input Offset Voltage-Max	5μV
Wideband	NO
Power	NO
Height Seated (Max)	4.445mm
Length	9.78mm
Width	7.62mm
RoHS Status	Non-RoHS Compliant

LTC1052CN8 Product Details

LTC1052CN8 Overview

Op amp is packaged in 8-DIP (0.300, 7.62mm) case. An op amp of this type is a General Purpose-type. The case in which buffer amplifier is delivered is called a Tube case. The number of terminations approaches 8. Buffer amplifier has a total of 8 pins on it. I would like to remind you that this buffer op amp should be powered by an 5V battery. A type of Operational Amplifier op amp ic can be identified by the fact that this is a type of Operational Amplifier device. This electronic part is best mounted with type Through Hole. On this instrumentation amplifier, there are 1 circuits that are connected together.
