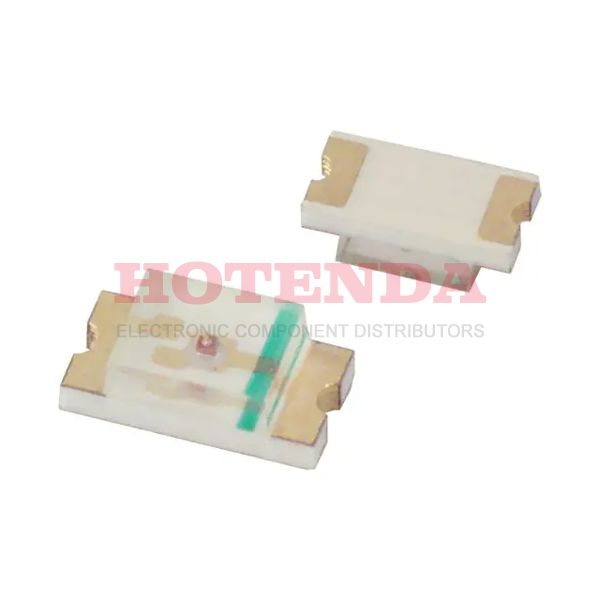

LTST-C150CKT datasheet pdf and LED Indication - Discrete product details from Lite-On Inc. stock available on our website
SOT-23
LTST-C150CKT Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
1206 (3216 Metric)
Number of Pins
2
Shape
RECTANGULAR
Manufacturer Package Identifier
LTST-C150CKT
Packaging
Tape & Reel (TR)
Published
2000
Size / Dimension
3.20mm Lx1.60mm W
JESD-609 Code
e3
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Tin (Sn)
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Color
Red
Additional Feature
IC COMPATIBLE
Power Rating
100mW
Packing Method
TAPE AND REEL 7"
Max Power Dissipation
100mW
Number of Functions
1
Terminal Pitch
3.5mm
Depth
1.6mm
Case Code (Metric)
3216
Case Code (Imperial)
1206
Number of Elements
1
Configuration
Standard
Power Dissipation
100mW
Voltage - Forward (Vf) (Typ)
1.8V
Viewing Angle
130°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
40mA
Current - Test
10mA
Lens Style
Rectangle with Flat Top
Lens Size
2.06mmx1.60mm
Luminous Intensity
25 mcd
Millicandela Rating
10mcd
Lens Transparency
Clear
Wavelength - Peak
660nm
Lens Color
Colorless
Reverse Voltage
5V
Wavelength - Dominant
638nm
Height
1.2mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:3368 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$0.156943
$0.156943
10
$0.148059
$1.48059
100
$0.139678
$13.9678
500
$0.131772
$65.886
1000
$0.124313
$124.313
LTST-C150CKT Product Details
Description:
The Lite-On LTST-C150CKT LED Indication - Discrete is a 1206 SMD LED with a red clear lens. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle and is RoHS compliant.
Features:
• 1206 SMD LED with red clear lens • Wide viewing angle • RoHS compliant • Low power consumption • High reliability • Long life
Applications:
The Lite-On LTST-C150CKT LED Indication - Discrete is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for backlighting, status indication, and decorative lighting. It is also suitable for use in medical devices, security systems, and other electronic devices.
