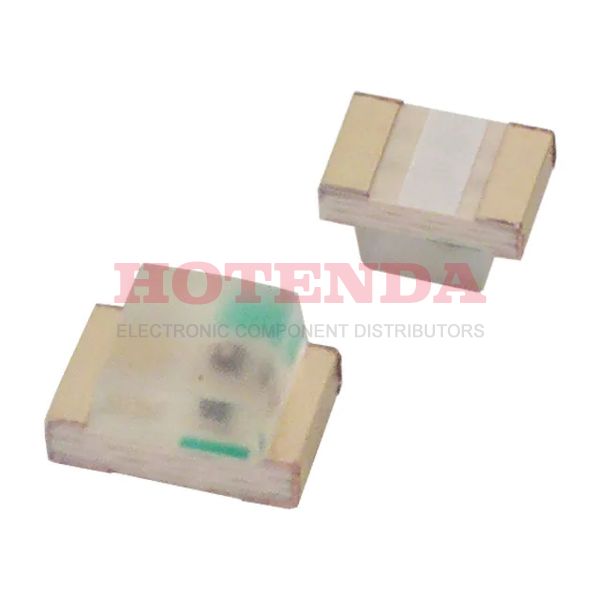

LTST-C170CKT datasheet pdf and LED Indication - Discrete product details from Lite-On Inc. stock available on our website
SOT-23
LTST-C170CKT Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2002
Size / Dimension
2.00mm Lx1.25mm W
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
2
ECCN Code
EAR99
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Color
Red
Additional Feature
IC COMPATIBLE
Subcategory
Visible LEDs
Power Rating
100mW
Packing Method
TAPE AND REEL 7"
Max Power Dissipation
100mW
Number of Functions
1
Depth
1.25mm
Case Code (Metric)
2012
Case Code (Imperial)
0805
Number of Elements
1
Configuration
Standard
Voltage
5V
Current
4A
Power Dissipation
100mW
Voltage - Forward (Vf) (Typ)
1.8V
Viewing Angle
130°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
40mA
Current - Test
10mA
Lens Style
Rectangle with Flat Top
Lens Size
1.40mmx1.25mm
Luminous Intensity
10 mcd
Lens Transparency
Clear
Wavelength - Peak
660nm
Lens Color
Colorless
Reverse Voltage
5V
Wavelength - Dominant
638nm
Height
1.1mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:1511 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
LTST-C170CKT Product Details
The Lite-On LED Indication - Discrete LTST-C170CKT is a high-performance, reliable LED indicator designed for a variety of applications. This LED indicator features a red clear SMD (Surface Mount Device) with a wide viewing angle and a long life span. It is designed to be used in a variety of applications, including automotive, industrial, and consumer electronics. The LED indicator is RoHS compliant and is UL recognized. It is also designed to be highly efficient and reliable, with a low power consumption and a high luminous intensity. The LED indicator is also designed to be easy to install and maintain, with a simple mounting system and a wide range of mounting options. The LED indicator is also designed to be highly durable, with a long life span and a high resistance to shock and vibration. The Lite-On LED Indication - Discrete LTST-C170CKT is an ideal choice for a variety of applications.
