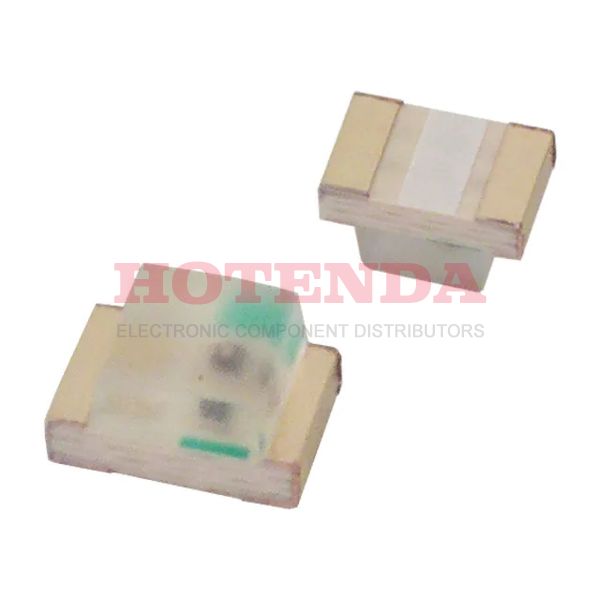

LTST-C170GKT datasheet pdf and LED Indication - Discrete product details from Lite-On Inc. stock available on our website
SOT-23
LTST-C170GKT Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0805 (2012 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2003
Size / Dimension
2.00mm Lx1.25mm W
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
2A (4 Weeks)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
TIN (SN)
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Color
Green
Additional Feature
IC COMPATIBLE, SUPPORTS INFRARED
Subcategory
Visible LEDs
Power Rating
100mW
Packing Method
TAPE AND REEL 7"
Number of Functions
1
Depth
1.25mm
Case Code (Metric)
2012
Case Code (Imperial)
0805
Number of Elements
1
Configuration
Standard
Voltage
5V
Current
4A
Power Dissipation
100mW
Voltage - Forward (Vf) (Typ)
2.1V
Viewing Angle
130°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
30mA
Current - Test
10mA
Lens Style
Rectangle with Flat Top
Lens Size
1.40mmx1.25mm
Luminous Intensity
6 mcd
Lens Transparency
Clear
Wavelength - Peak
565nm
Lens Color
Colorless
Reverse Voltage
5V
Wavelength - Dominant
569nm
Height
1.1mm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:29718 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
LTST-C170GKT Product Details
The Lite-On LED Indication - Discrete LTST-C170GKT is a surface-mount LED with a green, clear lens. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle of 120° and a low power consumption of 1.2 mA at 20 mA. It is RoHS compliant and has a long life expectancy of up to 100,000 hours. The LED is also resistant to shock and vibration, making it suitable for use in harsh environments. It is available in a variety of packages, including through-hole, surface-mount, and right-angle. The LED is suitable for use in a variety of applications, including automotive lighting, industrial lighting, and consumer electronics.
