LTST-C171KRKT

LTST-C171KRKT

LTST-C171KRKT

Lite-On Inc.

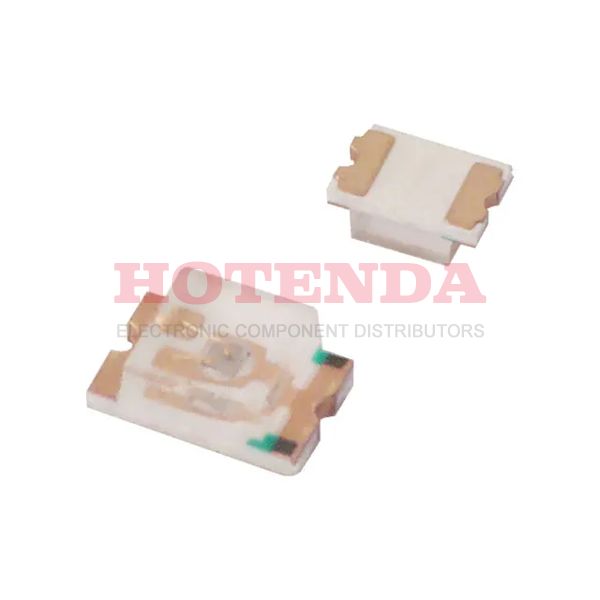

LED RED CLEAR SMD

SOT-23

LTST-C171KRKT Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Number of Pins 2
Shape RECTANGULAR
PackagingCut Tape (CT)
Published 2005
Size / Dimension 2.00mm Lx1.25mm W
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 2A (4 Weeks)
Number of Terminations 2
Terminal Finish Tin (Sn)
Max Operating Temperature85°C
Min Operating Temperature -55°C
Color Red
Additional FeatureIC COMPATIBLE
Power Rating 75mW
Packing Method TAPE AND REEL 7"
Number of Functions 1
Depth 1.25mm
Case Code (Metric) 2012
Case Code (Imperial) 0805
Number of Elements 1
Configuration Standard
Power Dissipation75mW
Voltage - Forward (Vf) (Typ) 2V
Viewing Angle130°
Optoelectronic Device Type SINGLE COLOR LED
Forward Current30mA
Current - Test 20mA
Lens Style Rectangle with Flat Top
Lens Size 1.40mmx1.25mm
Luminous Intensity54 mcd
Lens Transparency Clear
Wavelength - Peak 639nm
Lens ColorColorless
Reverse Voltage5V
Wavelength - Dominant 631nm
Height 800μm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Lead Free Lead Free
In-Stock:27594 items

Pricing & Ordering

QuantityUnit PriceExt. Price

LTST-C171KRKT Product Details

Description:

The Lite-On LTST-C171KRKT LED Indication - Discrete is a surface mount LED with a red clear lens. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle and is RoHS compliant.

Features:

• Red clear lens

• Surface mount LED

• Wide viewing angle
• RoHS compliant
• Low power consumption
• High reliability
• Long life

Applications:

The Lite-On LTST-C171KRKT LED Indication - Discrete is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting. It is also suitable for use in medical devices, security systems, and other electronic devices.
