LTST-C190CKT Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2000
Size / Dimension
1.60mm Lx0.80mm W
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Tin (Sn)
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Color
Red
Additional Feature
IC COMPATIBLE
Subcategory
Visible LEDs
Power Rating
100mW
Packing Method
TAPE AND REEL 7"
Max Power Dissipation
100mW
Number of Functions
1
Depth
800μm
Case Code (Metric)
1608
Case Code (Imperial)
0603
Number of Elements
1
Configuration
Standard
Power Dissipation
100mW
Voltage - Forward (Vf) (Typ)
1.8V
Viewing Angle
130°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Current - Test
10mA
Lens Style
Rectangle with Flat Top
Lens Size
1.10mmx0.80mm
Luminous Intensity
10 mcd
Lens Transparency
Clear
Wavelength - Peak
660nm
Lens Color
Colorless
Reverse Voltage
5V
Wavelength - Dominant
638nm
Height
900μm
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:4945 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
LTST-C190CKT Product Details
Description:

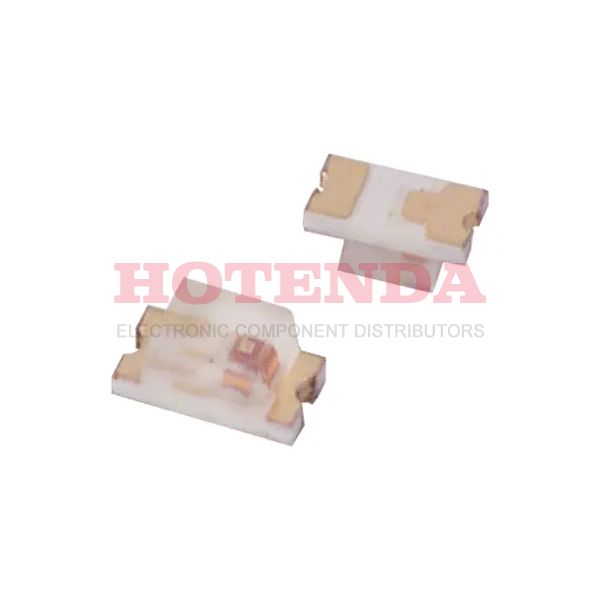

The Lite-On LTST-C190CKT LED Indication - Discrete is a surface mount LED with a red clear chip. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle and is RoHS compliant.
Features:
• Red clear chip • Surface mount LED • Wide viewing angle • RoHS compliant • Low power consumption • High reliability • Long life
Applications:
The Lite-On LTST-C190CKT LED Indication - Discrete is suitable for a variety of applications, including automotive, industrial, and consumer electronics. It can be used for status indication, backlighting, and decorative lighting. It is also suitable for use in medical devices, security systems, and other electronic devices.
