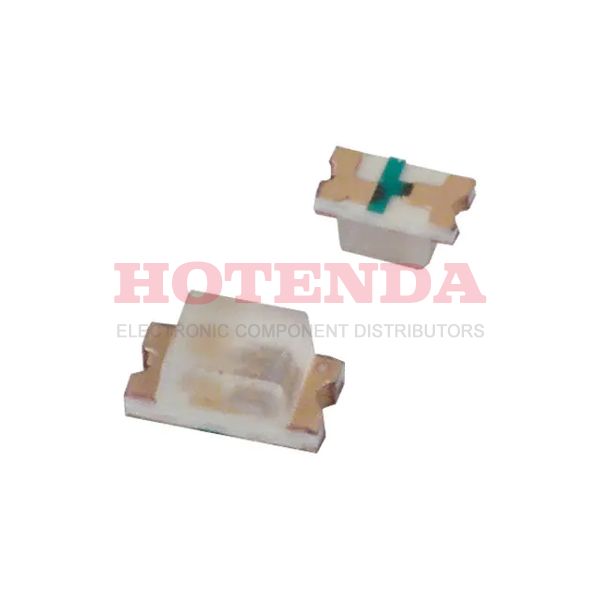

LTST-C190TBKT datasheet pdf and LED Indication - Discrete product details from Lite-On Inc. stock available on our website
SOT-23
LTST-C190TBKT Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
12 Weeks
Mount
Surface Mount
Mounting Type
Surface Mount
Package / Case
0603 (1608 Metric)
Number of Pins
2
Shape
RECTANGULAR
Packaging
Tape & Reel (TR)
Published
2002
Size / Dimension
1.60mm Lx0.80mm W
JESD-609 Code
e3
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
3 (168 Hours)
Number of Terminations
2
ECCN Code
EAR99
Terminal Finish
Tin (Sn)
Max Operating Temperature
80°C
Min Operating Temperature
-20°C
Color
Blue
Additional Feature
IC COMPATIBLE
Subcategory
Visible LEDs
Packing Method
TAPE AND REEL 7"
Number of Functions
1
Depth
800μm
Case Code (Metric)
1608
Case Code (Imperial)
0603
Number of Elements
1
Configuration
Standard
Interface
Serial
Max Supply Voltage
3.6V
Min Supply Voltage
2.1V
Current
2A
Power Dissipation
76mW
Voltage - Forward (Vf) (Typ)
3.3V
Viewing Angle
130°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
20mA
Lens Style
Rectangle with Flat Top
Lens Size
1.10mmx0.80mm
Luminous Intensity
180 mcd
Millicandela Rating
104mcd
Lens Transparency
Clear
Wavelength - Peak
468nm
Lens Color
Colorless
Reverse Voltage
5V
Forward Voltage-Max
3.8V
Wavelength - Dominant
470nm
Nominal Supply Voltage (DC)
3V
Height
1.1mm
REACH SVHC
No SVHC
Radiation Hardening
No
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:17190 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
LTST-C190TBKT Product Details
The Lite-On LED Indication - Discrete LTST-C190TBKT is a surface-mount LED with a blue clear chip. It is designed for use in a variety of applications, including automotive, industrial, and consumer electronics. The LED has a wide viewing angle of 120° and a low power consumption of 1.2 mA. It is RoHS compliant and has a long life expectancy of up to 100,000 hours. The LED is also resistant to shock and vibration, making it suitable for use in harsh environments. It is available in a variety of packages, including through-hole, SMD, and leaded. Applications for the LED include backlighting, status indication, and decorative lighting.
