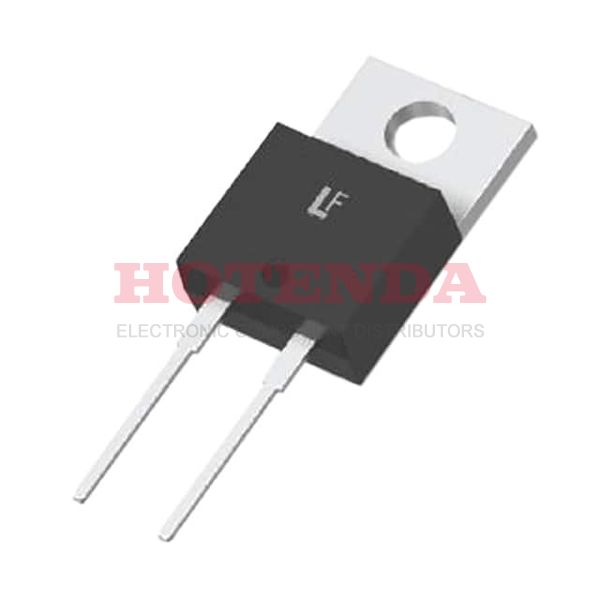

LSIC2SD120A10

Name: LSIC2SD120A10
Brand: Littelfuse Inc.
SKU: LSIC2SD120A10
Availability: InStock

new-10%

Manufacturer part number:LSIC2SD120A10

Manufacturer:Littelfuse Inc.

Description:LSIC2SD120A10 datasheet pdf and Diodes - Rectifiers - Single product details from Littelfuse Inc. stock available on our website

Case Package:SOT-23

Datasheet:LSIC2SD120A10 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	23 Weeks
Mounting Type	Through Hole
Package / Case	TO-220-2
Surface Mount	NO
Packaging	Tube
Published	2017
Series	Gen2
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Additional Feature	PD-CASE
HTS Code	8541.10.00.80
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	unknown
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
JESD-30 Code	R-PSFM-T2
Operating Temperature (Max)	175°C
Number of Elements	1
Configuration	SINGLE
Power Dissipation-Max	136W
Speed	No Recovery Time > 500mA (Io)
Diode Type	Silicon Carbide Schottky
Current - Reverse Leakage @ Vr	100μA @ 1200V
Voltage - Forward (Vf) (Max) @ If	1.8V @ 10A
Case Connection	CATHODE
Forward Current	28A
Operating Temperature - Junction	-55°C~175°C
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	1200V
Current - Average Rectified (Io)	28A DC
Number of Phases	1
Reverse Recovery Time	0ns
Rep Pk Reverse Voltage-Max	1200V
JEDEC-95 Code	TO-220AC
Capacitance @ Vr, F	582pF @ 1V 1MHz
Reverse Current-Max	100μA
RoHS Status	ROHS3 Compliant
