SSL-LX5093BSRD datasheet pdf and LED Indication - Discrete product details from Lumex Opto/Components Inc. stock available on our website
SOT-23
SSL-LX5093BSRD Datasheet PDF
non-compliant
Technical Specifications
Parameter Name
Value
Type
Parameter
Factory Lead Time
10 Weeks
Mount
Through Hole
Mounting Type
Through Hole
Package / Case
Radial
Number of Pins
2
Packaging
Bulk
Published
2007
Series
QuasarBrite
Feature
Flashing
Pbfree Code
yes
Part Status
Active
Moisture Sensitivity Level (MSL)
1 (Unlimited)
Number of Terminations
2
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Color
Red
Subcategory
Visible LEDs
Number of Functions
1
Operating Supply Voltage
14V
Configuration
Standard
Max Supply Voltage
14V
Min Supply Voltage
3V
Viewing Angle
60°
Optoelectronic Device Type
SINGLE COLOR LED
Forward Current
6mA
Current - Test
20mA
Lens Style
Round with Domed Top
Lens Size
5mm T-1 3/4
Luminous Intensity
200 mcd
Lens Transparency
Diffused
Wavelength - Peak
660nm
Number of LEDs
1
Diameter
5mm
Height
8.6mm
REACH SVHC
No SVHC
RoHS Status
ROHS3 Compliant
Lead Free
Lead Free
In-Stock:4559 items
Pricing & Ordering
Quantity
Unit Price
Ext. Price
1
$1.21000
$1.21
10
$0.98200
$9.82
25
$0.75520
$18.88
100
$0.67950
$67.95
250
$0.60400
$151
500
$0.51340
$256.7
SSL-LX5093BSRD Product Details

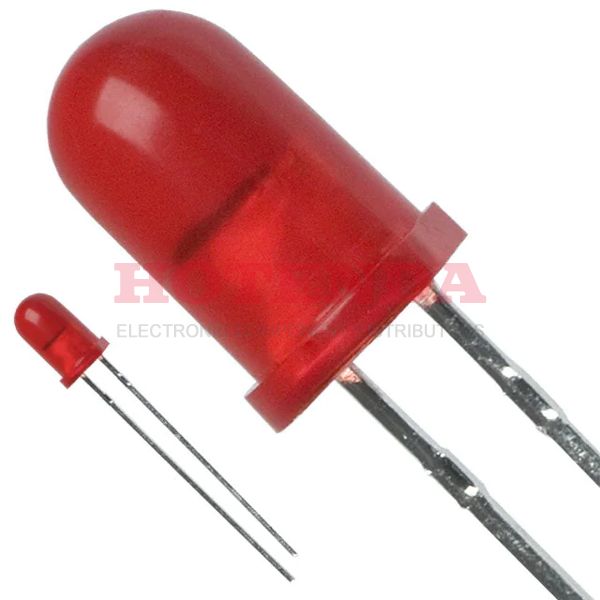

Description: The Lumex SSL-LX5093BSRD is a discrete LED indication light with a uni-color red light emitting diode (LED) that operates at a wavelength of 660nm. It has a 2-pin T-1 3/4 (5mm) package and is designed for use in a variety of applications.
Features: - Uni-color red LED with a wavelength of 660nm - 2-pin T-1 3/4 (5mm) package - Low power consumption - High reliability - Long life - RoHS compliant
Applications: The Lumex SSL-LX5093BSRD is suitable for a variety of applications, including automotive, industrial, medical, and consumer electronics. It can be used as an indicator light, a warning light, or a status light. It is also suitable for use in backlighting applications.
